This SAE indicator offers a 0.38" (9.5 mm) diameter stem for secure placement. It also features a 4 to 48 UNF thread.
This SAE indicator offers a 0.38" (9.5 mm) diameter stem for secure placement. It also features a 4 to 48 UNF thread.

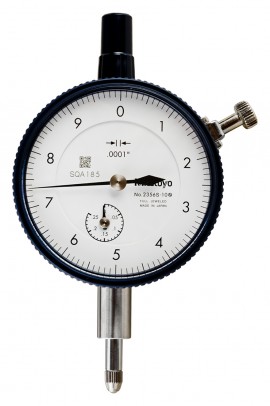

View inch readings on the Mitutoyo 2356S-10 Series 2 Standard Dial Indicator with Lug. The dial is clear and easy to read, designed with numbers 0 to 10. The stem measures 0.38" (9.5 mm) to accommodate your setup.
Features
| Supported Measurement Unit(s) | in |
| Measurement Range | 0.25" per 0.01" revolution |
| Accuracy | 0.0001" first 2.5 revolutions; 0.0005" overall |
| Dial Reading | 0 to 10 |
| Dial Color | White/black |
| Graduation Measurements | Inches |
| Supported Measurement Unit(s) | in |
| Measurement Range | 0.25" per 0.01" revolution |
| Accuracy | 0.0001" first 2.5 revolutions; 0.0005" overall |
| Dial Reading | 0 to 10 |
| Dial Color | White/black |
| Graduation Measurements | Inches |
