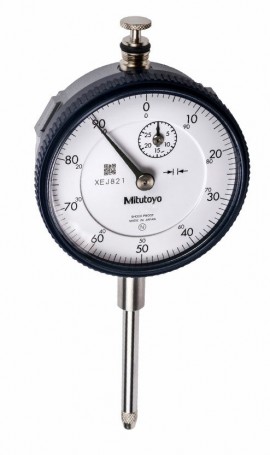

Mitutoyo 2109A-10 Series 2 Dial Indicator, 0 to 1 mm, metric

Modèle: 2109A-10

Mitutoyo 2109A-10 Series 2 Dial Indicator, 0 to 1 mm, metric

Modèle: 2109A-10

Accurate and durable, this dial indicator features a high-strength steel stem and spindle and a jeweled bearing for wear resistance and low friction movements. In addition, this indicator features metric units and a measuring range of 0 to 1 mm for a wide range of applications.

Accurate and durable, this dial indicator features a high-strength steel stem and spindle and a jeweled bearing for wear resistance and low friction movements. In addition, this indicator features metric units and a measuring range of 0 to 1 mm for a wide range of applications.

Prix spécial $245.66 CAD
Prix régulier $284.00 CAD
Disponibilité 1 à 2 semaines
Quantité

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 2109A-10 Series 2 Dial Indicator

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 2109A-10 Series 2 Dial Indicator

Mitutoyo 2109A-10 offre

Caractéristiques

  • Offered with lug back for mounting purposes
  • A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • Four-screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • The crystal has a scratch and glare-resistant coating for clearer readings and better durability
  • The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools
  • Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face
  • Manufactured to meet ISO/JIS standards

Spécifications pour le Mitutoyo 2109A-10

Range 0 to 1 mm
Units Metric
Graduation 0.001 mm
Range Revolution 0.2 mm
Dial Reading 0 to 100 to 0
Accuracy ±0.005 mm
Back Type Lug back
Measuring Force 1.5 N or less
Stem Diameter 8 mm
Shockproof Yes
Jeweled Bearing Yes
ISO/JIS Type Yes

What's included with the Mitutoyo 2109A-10

  • Dial Indicator
  • Carrying Case

Poser une question sur le Mitutoyo 2109A-10 Series 2 Dial Indicator, 0 to 1 mm, metric

Mitutoyo 2109A-10 offre

Caractéristiques

  • Offered with lug back for mounting purposes
  • A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • Four-screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • The crystal has a scratch and glare-resistant coating for clearer readings and better durability
  • The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools
  • Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face
  • Manufactured to meet ISO/JIS standards

Spécifications pour le Mitutoyo 2109A-10

Range 0 to 1 mm
Units Metric
Graduation 0.001 mm
Range Revolution 0.2 mm
Dial Reading 0 to 100 to 0
Accuracy ±0.005 mm
Back Type Lug back
Measuring Force 1.5 N or less
Stem Diameter 8 mm
Shockproof Yes
Jeweled Bearing Yes
ISO/JIS Type Yes

What's included with the Mitutoyo 2109A-10

  • Dial Indicator
  • Carrying Case

Poser une question sur le Mitutoyo 2109A-10 Series 2 Dial Indicator, 0 to 1 mm, metric
