This dial indicator features a flat-back design to handle use in compact areas. It has a 4 to 48 UNF thread and a bright dial face.
This dial indicator features a flat-back design to handle use in compact areas. It has a 4 to 48 UNF thread and a bright dial face.

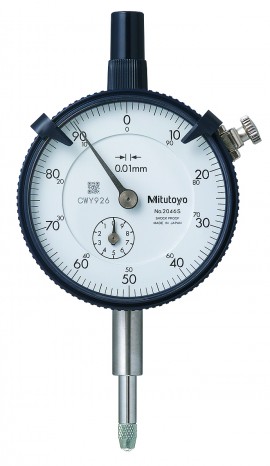

Designed with a bright dial face, the Mitutoyo 2046SB-01 Series 2 ANSI/AGD Flat-Back Dial Indicator offers easy readings. The compact indicator features a stem that measures 0.38" (9.5 mm) in diameter and a 4 to 48 UNF thread.
Features
| Supported Measurement Unit(s) | mm |
| Measurement Range | 10 mm per 1 mm revolution |
| Accuracy | 0.01 mm first 2.5 revolutions; 0.013 mm overall |
| Dial Reading | 0 to 100 |
| Dial Color | Multi |
| Graduation Measurements | Millimeters |
| Approvals | ANSI; AGD |
| Supported Measurement Unit(s) | mm |
| Measurement Range | 10 mm per 1 mm revolution |
| Accuracy | 0.01 mm first 2.5 revolutions; 0.013 mm overall |
| Dial Reading | 0 to 100 |
| Dial Color | Multi |
| Graduation Measurements | Millimeters |
| Approvals | ANSI; AGD |
