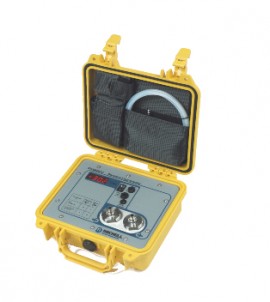

Ideal for plug-and-measure-mobile dew-point spot checks, this portable hygrometer has a robust integral sample system and a wide measurement range ceramic metal-oxide moisture sensor. In addition, it has a flow and pressure control with a 6.5' (2 m) ¼";; PTFE sample tube.
Ideal for plug-and-measure-mobile dew-point spot checks, this portable hygrometer has a robust integral sample system and a wide measurement range ceramic metal-oxide moisture sensor. In addition, it has a flow and pressure control with a 6.5' (2 m) ¼";; PTFE sample tube.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n'y a aucune option de remplacement.
Nous pouvons vous aider à trouver ce dont vous avez besoin:
Caractéristiques
Applications
| Measurement Range | Spot-checking: -76 to 68°F (-60 to 20°C) dew point Online monitoring: -148 to 68°F (-100 to 20°C) dew point |
| Accuracy | ±35.6°F (2°C) dew point |
| Repeatability | 32.9°F (0.5°C) dew point |
| Calibration | 13-point calibration certificate traceable to national standards |
| Output Signal | User configurable over range; 4 to 20 mA (2-wire connection, current source) |
| Power Supply | Rechargeable NiMH battery pack with 16-hour life from full charge |
| Electrical Safety | EN61010-1 |
| Temperature | Operating: -4 to 41°F (-20 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Recommended Flow Rate | 1 to 5 Nl/min |
| Ingress Protection | NEMA type 6 |
| Display Type | Flush mounted 3.5 digit red LED |
| Weight | 8.82 lbs (4 kg) |
| Measurement Range | Spot-checking: -76 to 68°F (-60 to 20°C) dew point Online monitoring: -148 to 68°F (-100 to 20°C) dew point |
| Accuracy | ±35.6°F (2°C) dew point |
| Repeatability | 32.9°F (0.5°C) dew point |
| Calibration | 13-point calibration certificate traceable to national standards |
| Output Signal | User configurable over range; 4 to 20 mA (2-wire connection, current source) |
| Power Supply | Rechargeable NiMH battery pack with 16-hour life from full charge |
| Electrical Safety | EN61010-1 |
| Temperature | Operating: -4 to 41°F (-20 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Recommended Flow Rate | 1 to 5 Nl/min |
| Ingress Protection | NEMA type 6 |
| Display Type | Flush mounted 3.5 digit red LED |
| Weight | 8.82 lbs (4 kg) |
