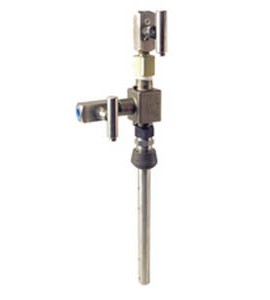

Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe

Modèle: 23L-0060A-XX | No. de commande: 23L-0060A-XX-XX-XX-XX

Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe-

Télécharger: datasheet manual

Plus de produits Meriam

Demander à un expert

Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe

Modèle: 23L-0060A-XX | No. de commande: 23L-0060A-XX-XX-XX-XX

Composed of a 316LSS cast head and probe with double mount support that is ideal for high pressure applications. This 6" insertion type accutube has a probe diameter of 1/2" and is supplied with complete mounting hardware.

Composed of a 316LSS cast head and probe with double mount support that is ideal for high pressure applications. This 6" insertion type accutube has a probe diameter of 1/2" and is supplied with complete mounting hardware.

Prix spécial $1991.76 CAD
Prix régulier $2316.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Meriam 23L-0060A-XX Offers

High pressure, insertion type Accutube constructed of a 316LSS cast head and a 316LSS probe. The 23L probe has double-mounted support factory-fitted with 1/2 NPT connections.

Features

  • Impressive accuracy and repeatability
  • Can be used with pipe work or duct work
  • Simple installation and maintenance
  • Bi-directional, high pressure/temperature insertion type flow sensing
  • Low permanent head loss saves energy
  • Multiple tube design offers superior strength and clog resistance
  • Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

  • Gas
  • Liquid
  • Vapor
  • Steam

Meriam 23L-0060A-XX Specifications

Line Size 6"
Mount Double support
Probe Diameter 1/2"
Body Material 316SS
Repeatability +0.1%
Accuracy 1% of rate accuracy
Pressure 1500 PSIG
Temperature 800°F
Cliquer ici pour toutes les spécifications du Meriam 23L-0060A-XX

Le Meriam 23L-0060A-XX comprend

  • Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe
datasheet pour le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe manual pour le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe

Poser une question sur le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe

Meriam 23L-0060A-XX Offers

High pressure, insertion type Accutube constructed of a 316LSS cast head and a 316LSS probe. The 23L probe has double-mounted support factory-fitted with 1/2 NPT connections.

Features

  • Impressive accuracy and repeatability
  • Can be used with pipe work or duct work
  • Simple installation and maintenance
  • Bi-directional, high pressure/temperature insertion type flow sensing
  • Low permanent head loss saves energy
  • Multiple tube design offers superior strength and clog resistance
  • Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

  • Gas
  • Liquid
  • Vapor
  • Steam
En savoir plus...

Meriam 23L-0060A-XX Specifications

Line Size 6"
Mount Double support
Probe Diameter 1/2"
Body Material 316SS
Repeatability +0.1%
Accuracy 1% of rate accuracy
Pressure 1500 PSIG
Temperature 800°F
Cliquer ici pour toutes les spécifications du Meriam 23L-0060A-XX

Le Meriam 23L-0060A-XX comprend

  • Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe
datasheet pour le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe manual pour le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe

Poser une question sur le Meriam 23L-0060A-XX-XX Double Mount High Pressure Accutube, 6", 1/2" Probe
