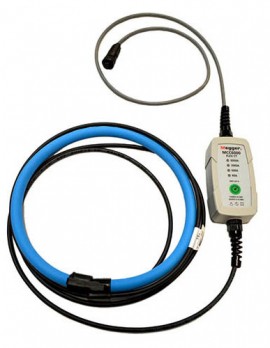

Four range self-identifying flexible current clamp. 18 cm inner diameter (ID). Automatically identifies the range to which the CT is set. Supported ranges are: 0 to 60A, 0 to 600A, 0 to 3000A and 0 to 6000A.
Four range self-identifying flexible current clamp. 18 cm inner diameter (ID). Automatically identifies the range to which the CT is set. Supported ranges are: 0 to 60A, 0 to 600A, 0 to 3000A and 0 to 6000A.
Features
| Max Voltage | 1000V to Ground |
| Current Range | 5-60AAC RMS |
| Scale at 60A | 16.7mV / Amp |
| Current Range | 60 – 600AAC RMS |
| Scale at 3000A | 0.33mV / Amp |
| Current Range | 1500 – 6000AAC RMS |
| Scale at 6000A | 0.167mV / Amp |
| Bandwidth | 20 Hz to 5 kHz |
| Accuracy | 1% of reading @ 50/60Hz |
| Phase Shift | < 0.7⁰ max @ 60A |
| Phase Shift | < 0.4⁰ max @ 600A |
| Phase Shift | < 0.4⁰ max @ 3000A |
| Phase Shift | < 0.4⁰ max @ 6000A |
| Overload | 20KA Continuous |
| Power Source | PQ Instrument |
| Length | 6 feet (182.8cm) |
| Weight | 10 oz |
| Operating temperature | -20 -50℃ |
| Altitude | 2000 meters |
