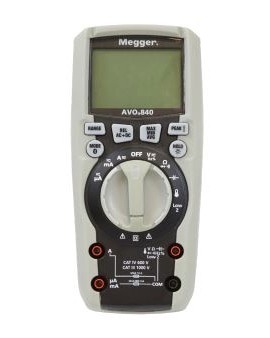

The AVO840 True RMS multimeter is for electricians, technicians, engineers, and service personnel. Comes with Bluetooth connectivity and mobile app support for Android and iOS devices. Real-time measurement sharing and remote track readings from a safe distance.
The AVO840 True RMS multimeter is for electricians, technicians, engineers, and service personnel. Comes with Bluetooth connectivity and mobile app support for Android and iOS devices. Real-time measurement sharing and remote track readings from a safe distance.
The AVO840 multimeter is for professional electricians, technicians, service personnel and engineers that require high reliability, build quality and performance in a compact, tough, case. Suitable for applications where more than the basic functions are needed.
Applications
The AVO840 is an excellent choice for test and measurement, industrial maintenance, industrial, electrical and safety. The AVO840 has all the features you need plus more for maintenance and fixing problems quickly thanks to its precision, reliability, and ease of use. The AVO840 is the preferred solution for professional technicians, electricians, or facilities managers. Diagnose fault with ease from HVAC systems, presses, furnaces, CNC, robots to PCBAs.
Caractéristiques
| Insulation | Class 2, double insulation |
| Enclosure | Double moulded, IP44 |
| Diode | Test current 1 mA typical, open circuit voltage 3 V typical |
| Continuity Test | Audible signal if the resistance is <50 Ω |
| Battery Indication | Low battery. Replace batteries. |
| Display | 6000 count LCD |
| Over Range Indication | “OL” is displayed |
| Polarity | Automatic (no indication for positive); Minus (-) sign for negative |
| Measurement Rate | 3 readings per second |
| Auto Power Off | After approx. 15 minutes of inactivity |
| Input Impedance | > 10 MΩ V DC and >9 MΩ V AC |
| Low-Z | Approx. 3 kΩ input impedance |
| Temperature sensor | Requires K-type thermocouple |
| AC Response | True RMS |
| ACV Bandwidth | 50 to 1 kHz |
| Transducer Current | MAX 3000 A |
| Batteries | Four AAA 1.5 V batteries |
| Battery Cell Type | Alkaline |
| Size (H x W x D) | 170 x 74 x 45 mm (6.7 x 2.9 x 1.8 in) |
| Weight | 370 g with battery 417 g |
| F1 Fuse protection for A Inputs | 10 A, 1000 V, 30 kA |
| F2 Fuse protection for mA input | 800 mA, 1000 V, 30 kA |
| Insulation | Class 2, double insulation |
| Enclosure | Double moulded, IP44 |
| Diode | Test current 1 mA typical, open circuit voltage 3 V typical |
| Continuity Test | Audible signal if the resistance is <50 Ω |
| Battery Indication | Low battery. Replace batteries. |
| Display | 6000 count LCD |
| Over Range Indication | “OL” is displayed |
| Polarity | Automatic (no indication for positive); Minus (-) sign for negative |
| Measurement Rate | 3 readings per second |
| Auto Power Off | After approx. 15 minutes of inactivity |
| Input Impedance | > 10 MΩ V DC and >9 MΩ V AC |
| Low-Z | Approx. 3 kΩ input impedance |
| Temperature sensor | Requires K-type thermocouple |
| AC Response | True RMS |
| ACV Bandwidth | 50 to 1 kHz |
| Transducer Current | MAX 3000 A |
| Batteries | Four AAA 1.5 V batteries |
| Battery Cell Type | Alkaline |
| Size (H x W x D) | 170 x 74 x 45 mm (6.7 x 2.9 x 1.8 in) |
| Weight | 370 g with battery 417 g |
| F1 Fuse protection for A Inputs | 10 A, 1000 V, 30 kA |
| F2 Fuse protection for mA input | 800 mA, 1000 V, 30 kA |
