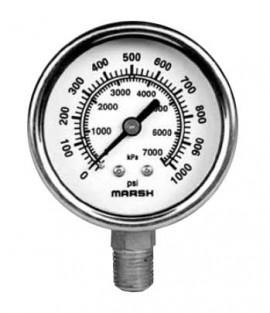

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
This liquid-filled gauge is designed to perform in rugged applications and harsh environments, especially where pulsation and vibration are a problem. It offers significant cushioning and dampening effect which reduces pointer flutter and internal gauge damage. It has a pressure range of 0 to 30 psi.
This liquid-filled gauge is designed to perform in rugged applications and harsh environments, especially where pulsation and vibration are a problem. It offers significant cushioning and dampening effect which reduces pointer flutter and internal gauge damage. It has a pressure range of 0 to 30 psi.
Features
Applications
| Range | 0 to 30 psi |
| Accuracy | ASME Grade B – ±3/2/3% (±2% of range across middle half of scale) |
| Case Sizes | 2.47" (63 mm) diameter |
| Case Material | 304 Stainless Steel |
| Case Style | Rolled ring, hermetically sealed case LM – Lower Mount |
| Tube & Socket | Copper alloy |
| Movement | Brass |
| Connection | 1⁄4" NPT |
| Dial Standard | Dual scale psi and kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, black painted |
| Window | Polycarbonate |
| Fill Medium | Glycerine Standard |
| Vent Plug | Rubber plug with snip-off feature |
| Weight | 1.0 lb |
| Range | 0 to 30 psi |
| Accuracy | ASME Grade B – ±3/2/3% (±2% of range across middle half of scale) |
| Case Sizes | 2.47" (63 mm) diameter |
| Case Material | 304 Stainless Steel |
| Case Style | Rolled ring, hermetically sealed case LM – Lower Mount |
| Tube & Socket | Copper alloy |
| Movement | Brass |
| Connection | 1⁄4" NPT |
| Dial Standard | Dual scale psi and kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, black painted |
| Window | Polycarbonate |
| Fill Medium | Glycerine Standard |
| Vent Plug | Rubber plug with snip-off feature |
| Weight | 1.0 lb |
