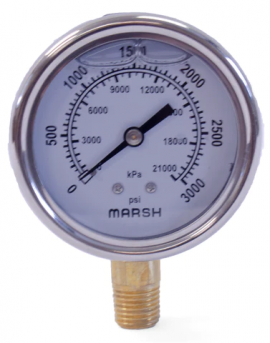

Marsh Instruments Liquid-Filled Gauges are designed to perform in rugged applications and harsh environmental conditions - especially where pulsation and vibration are a problem. Liquid-filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and internal gauge damage; also lubricating the internals, and reducing corrosion.
Marsh Instruments Liquid-Filled Gauges are designed to perform in rugged applications and harsh environmental conditions - especially where pulsation and vibration are a problem. Liquid-filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and internal gauge damage; also lubricating the internals, and reducing corrosion.
Caractéristiques
Applications
| Accuracy | ASME Grade B ±3/2/3% (±2% of range across middle half of scale) |
| Case Size | 63mm (2.47") diameter |
| Case Material | 304 Stainless Steel |
| Case Style | Rolled ring, hermetically sealed case; Center Back Mount |
| Tube and Socket | Copper alloy |
| Movement | Brass |
| Connection | ¼" NPT |
| Range | 0 to 160 psi |
| Dial Standard | Dual scale psi and kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, black painted |
| Window | Polycarbonate |
| Fill Medium | Glycerine Standard |
| Restrictor | Standard for all ranges |
| Vent Plug | Rubber plug with snap-off feature |
| Weight | Filled 1.0 lbs; Dry 0.7 lbs |
| Accuracy | ASME Grade B ±3/2/3% (±2% of range across middle half of scale) |
| Case Size | 63mm (2.47") diameter |
| Case Material | 304 Stainless Steel |
| Case Style | Rolled ring, hermetically sealed case; Center Back Mount |
| Tube and Socket | Copper alloy |
| Movement | Brass |
| Connection | ¼" NPT |
| Range | 0 to 160 psi |
| Dial Standard | Dual scale psi and kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, black painted |
| Window | Polycarbonate |
| Fill Medium | Glycerine Standard |
| Restrictor | Standard for all ranges |
| Vent Plug | Rubber plug with snap-off feature |
| Weight | Filled 1.0 lbs; Dry 0.7 lbs |
