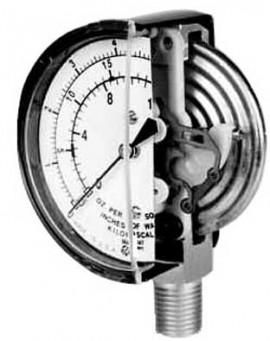

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Featuring a unique design, the diaphragm element in this gauge allows accurate low pressure readings in a variety of applications. This has a bronze diaphragm element, the gauge is capable of ASME Grade A-1% accuracy for ranges above 30" of water, and offers a pressure range of 0 to 15" H20 VAC.
Featuring a unique design, the diaphragm element in this gauge allows accurate low pressure readings in a variety of applications. This has a bronze diaphragm element, the gauge is capable of ASME Grade A-1% accuracy for ranges above 30" of water, and offers a pressure range of 0 to 15" H20 VAC.
Features
Applications
| Range | 0 to 15" H20 VAC |
| Accuracy | ±3/1/3% (±1% of range across middle half of scale) |
| Case Size | 2.5" diameter |
| Case Material | Steel, black painted |
| Case Style | LM - Lower Mount |
| Diaphragm & Socket | Phosphor bronze diaphragm |
| Movement | Brass sector and pinion |
| Connection | 1/4" NPT |
| Dial Standard | Dual Scale with kPa Triple Scale: oz/in2, in H20, & kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, painted black |
| Window | Acrylic Twist-In Clearlok |
| Restrictor | 0.013" standard |
| Weight | 0.5 lbs |
| Range | 0 to 15" H20 VAC |
| Accuracy | ±3/1/3% (±1% of range across middle half of scale) |
| Case Size | 2.5" diameter |
| Case Material | Steel, black painted |
| Case Style | LM - Lower Mount |
| Diaphragm & Socket | Phosphor bronze diaphragm |
| Movement | Brass sector and pinion |
| Connection | 1/4" NPT |
| Dial Standard | Dual Scale with kPa Triple Scale: oz/in2, in H20, & kPa |
| Dial Color | Black markings on white |
| Pointer | Aluminum, painted black |
| Window | Acrylic Twist-In Clearlok |
| Restrictor | 0.013" standard |
| Weight | 0.5 lbs |
