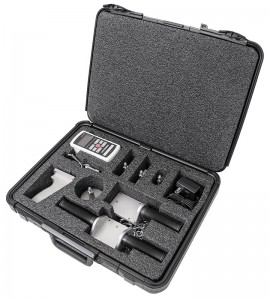

Make job task and ergonomics analysis simple and accurate with this ergonomics kit that is ideal for workplace design, strength assessment, and ergonomic studies with a capacity of up to 200 lbF (1000 N). This kit includes a push/pull force gauge, attachments, handle grips, and a large carrying case.
Make job task and ergonomics analysis simple and accurate with this ergonomics kit that is ideal for workplace design, strength assessment, and ergonomic studies with a capacity of up to 200 lbF (1000 N). This kit includes a push/pull force gauge, attachments, handle grips, and a large carrying case.
Ruggedly built for many years of service in laboratory and industrial environments, this ergonomics kit allows ergonomists and other professionals a simple and economical testing solution.
Features
Click-lock technology
Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, reducing the risk of damage to the instrument.
Applications
| Capacity x Resolution | 200 x 0.05 lbF 3200 x 1 ozF 100 x 0.02 kgF 1000 x 0.2 N 1 x 0.0002 kN |
| Accuracy | ±0.2% of full scale |
| Sampling Rate | 7000 Hz |
| Safe Overload | 200% of full scale (display shows "OVER" at 110% and above) |
| USB Output | Configurable up to 115,200 baud |
| Environmental Requirements | 40 to 100°F (4 to 37.8°C), maximum 93% humidity, non-condensing |
| Power | AC or rechargeable battery Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Battery Life | Backlight on: Up to 7 hours of continuous use Backlight off: Up to 24 hours of continuous use |
| Dimensions | Force gauge: 2.65 x 1.8 x 5.86" (67.3 x 45.7 x 148.9 mm) |
| Weight | Force gauge: 1.7 lbs (0.8 kg) |
