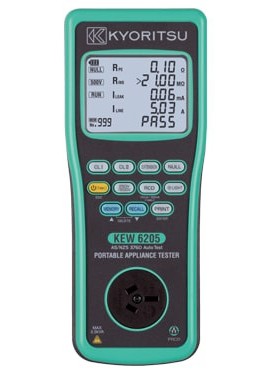

Offers protection from the dangers of faulty appliances by testing the electrical safety of Class I and II. Additionally, this portable tester indicates a pass/fail result in compliance with the standards of AS/NZS 3760.
Offers protection from the dangers of faulty appliances by testing the electrical safety of Class I and II. Additionally, this portable tester indicates a pass/fail result in compliance with the standards of AS/NZS 3760.
Unit has EU applications and comes with a typical EU plug. item is not returnable for this reason.
Features
| Mains Voltage Indication | |
| Display Range | 30 to 270 V |
| Accuracy | ±5 V |
| Protective Conductor Resistance Test | |
| Measuring Range | 0 to 20 Ω |
| Open Circuit Voltage | 5 V±0.4 V DC |
| Measuring Current | 200 mA DC(nominal value) |
| Accuracy | ±3% rdg ±5 dgt |
| Measuring Range | |
| Rated Volatge | 250 V/500 V |
| Measuring Range | 0 to 20 MΩ |
| Accuracy | ±2% rdg ±3 dgt |
| Power Source | 6 x 1.5 AA LR6 |
| Applicable Standards | IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC/EN61010-031, EN61326-2-2, AS/NZ3760 |
| Mains Voltage Indication | |
| Display Range | 30 to 270 V |
| Accuracy | ±5 V |
| Protective Conductor Resistance Test | |
| Measuring Range | 0 to 20 Ω |
| Open Circuit Voltage | 5 V±0.4 V DC |
| Measuring Current | 200 mA DC(nominal value) |
| Accuracy | ±3% rdg ±5 dgt |
| Measuring Range | |
| Rated Volatge | 250 V/500 V |
| Measuring Range | 0 to 20 MΩ |
| Accuracy | ±2% rdg ±3 dgt |
| Power Source | 6 x 1.5 AA LR6 |
| Applicable Standards | IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC/EN61010-031, EN61326-2-2, AS/NZ3760 |
