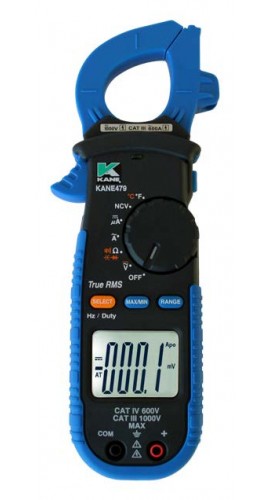

Rugged and versatile, this clamp-on meter makes motor or line current measurements easy. With a range of 600 A AC, this CAT IV meter features an audible voltage indicator and provides effortless non-contact voltage detection.
Rugged and versatile, this clamp-on meter makes motor or line current measurements easy. With a range of 600 A AC, this CAT IV meter features an audible voltage indicator and provides effortless non-contact voltage detection.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Voici le produit de remplacement direct :
Measure resistance and control voltage with this True RMS clamp-on meter that comes complete with alligator clips, a thermocouple temperature probe, and a zippered pouch.
Features
Functions
Applications
| AC Amps - Jaw Input | |
| 60 A Range | Resolution: 0.01 A Accuracy: ±(2.0% +8 digits) Overload protection: 600 V RMS |
| 600 A Range | Resolution: 0.1 A Accuracy: ±(2.0% +8 digits) Overload protection: 600 V RMS |
| True RMS Frequency Range | Sine 50 to 400 Hz |
| Frequency Width | 60 to 400 Hz: 5 to 95% 400 Hz to 4 kHz: 15 to 85% |
| AC Volts (45 to 400 Hz) | |
| 600 mV Range | Resolution: 0.1 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 6 V Range | Resolution: 1 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 60 V Range | Resolution: 10 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 600 V Range | Resolution: 100 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 750 V Range | Resolution: 1.0 V Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| True RMS Frequency Range | Sine 50 to 400 Hz |
| Bandwidth | Sine = 0.5% error at 1.5 kHz (maximum) Square = 0.5% error at 0.1 kHz (maximum) Triangle = 0.5% error at 1.2 kHz (maximum) |
| DC Volts | |
| 600 mV Range | Resolution: 0.1 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 6 V Range | Resolution: 1 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 60 V Range | Resolution: 10 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 600 V Range | Resolution: 100 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| Non-Contact Voltage | |
| On Voltage | Approximately 25 V AC |
| AC Amps - Jaw Input | |
| 60 A Range | Resolution: 0.01 A Accuracy: ±(2.0% +8 digits) Overload protection: 600 V RMS |
| 600 A Range | Resolution: 0.1 A Accuracy: ±(2.0% +8 digits) Overload protection: 600 V RMS |
| True RMS Frequency Range | Sine 50 to 400 Hz |
| Frequency Width | 60 to 400 Hz: 5 to 95% 400 Hz to 4 kHz: 15 to 85% |
| AC Volts (45 to 400 Hz) | |
| 600 mV Range | Resolution: 0.1 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 6 V Range | Resolution: 1 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 60 V Range | Resolution: 10 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 600 V Range | Resolution: 100 mV Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| 750 V Range | Resolution: 1.0 V Accuracy: ±(1.0% +3 digits) Overload protection: 1000 V RMS |
| True RMS Frequency Range | Sine 50 to 400 Hz |
| Bandwidth | Sine = 0.5% error at 1.5 kHz (maximum) Square = 0.5% error at 0.1 kHz (maximum) Triangle = 0.5% error at 1.2 kHz (maximum) |
| DC Volts | |
| 600 mV Range | Resolution: 0.1 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 6 V Range | Resolution: 1 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 60 V Range | Resolution: 10 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| 600 V Range | Resolution: 100 mV Accuracy: ±(0.5% +4 digits) Overload protection: 1000 V RMS |
| Non-Contact Voltage | |
| On Voltage | Approximately 25 V AC |
