This 230V heating circulator features an easy-to-operate central controller and an adjustable pressure pump. It is also designed with a closed bath tank, an analog interface and a 3.5in (8.89cm) TFT display.
This 230V heating circulator features an easy-to-operate central controller and an adjustable pressure pump. It is also designed with a closed bath tank, an analog interface and a 3.5in (8.89cm) TFT display.
Ce produit excède les dimensions/poids de livraison standard, donc il ne se qualifie pas pour la livraison gratuite et sera livrer directement du manufacturier. Nous vous contacterons avec vos frais de livraisons.

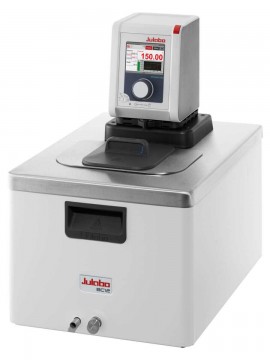

The Julabo DYNEO DD-BC12 Heating Circulator is designed for a variety of internal and external temperature control applications, and it switches between internal and external circulation with ease. The pressure pump delivers a flow rate of 5.8 GPM (22 LPM) at 0.6 bar and can be adjusted to suit your needs, while the built-in drain system makes it simple to safely drain liquids from the bath tank.
Features
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 3.17 gal (12 L) |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 17.3" (43.94 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 18.5" (46.99 cm) |
| Product Weight | 26.2 lbs (11.88 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
