This heating circulator is designed with a closed, insulated bath tank and an integrated drain system. The 3.5in (8.89cm) TFT display offers a clear view of your temperature data.
This heating circulator is designed with a closed, insulated bath tank and an integrated drain system. The 3.5in (8.89cm) TFT display offers a clear view of your temperature data.
Ce produit excède les dimensions/poids de livraison standard, donc il ne se qualifie pas pour la livraison gratuite et sera livrer directement du manufacturier. Nous vous contacterons avec vos frais de livraisons.

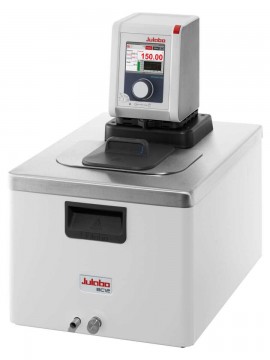

Use the Julabo DYNEO DD-BC12 Heating Circulator for different internal and external temperature control applications. This circulator features an insulated bath tank with an integrated coil for counter-cooling. The integrated drain system makes it safe and easy to empty liquids from the bath tank, while the large color TFT display clearly shows temperature data.
Features
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 3.17 gal (12 L) |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 17.3" (43.94 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 18.5" (46.99 cm) |
| Product Weight | 26.2 lbs (11.88 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 3.17 gal (12 L) |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 17.3" (43.94 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 18.5" (46.99 cm) |
| Product Weight | 26.2 lbs (11.88 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
