Use this circulator for your internal and external applications. The circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C).
Use this circulator for your internal and external applications. The circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C).
Ce produit excède les dimensions/poids de livraison standard, donc il ne se qualifie pas pour la livraison gratuite et sera livrer directement du manufacturier. Nous vous contacterons avec vos frais de livraisons.

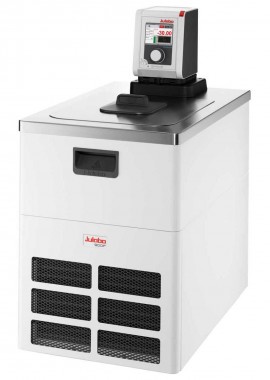

With a wide working temperature range of -36.4 to 392°F (-38 to 200°C), the Julabo DD-900F Analog DYNEO Refrigerated/Heating Circulator with Analog Interface lets you control the temperature of your internal or external applications. The pressure pump offers infinite adjustments, and the circulator features Pt100, USB and analog connections.
Features
| Working Temperature Range | -36.4 to 392°F (-38 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.11/0.31/0.52/0.8/0.85/0.9 kW (-30/-20/-10/0/10/20°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, analog |
| Material | Bath Tank: stainless steel |
| Bath Opening | 13.8 x 10.2" (35.05 x 25.91 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 21 to 30 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 24.4" (61.98 cm) |
| Product Width | 15.4" (39.12 cm) |
| Product Height | 29.5" (74.93 cm) |
| Product Weight | 114 lbs (51.71 kg) |
