Use this circulator for internal or external applications. The unit offers a wide temperature range of -13 to 392°F (-25 to 200°C).
Use this circulator for internal or external applications. The unit offers a wide temperature range of -13 to 392°F (-25 to 200°C).

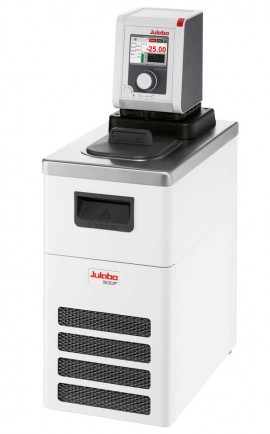

With a working temperature range of -13 to 392°F (-25 to 200°C), the Julabo DD-300F Analog DYNEO Refrigerated/Heating Circulator with Analog Interface delivers the temperature control you need. The unit is ideal for internal and external applications, while the optimized cooling coil design helps maximize the space in the bath tank.
Caractéristiques
| Working Temperature Range | -13 to 392°F (-25 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.08/0.19/0.27/0.3 kW (-20/-10/0/10 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, analog |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 3 to 4 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.5" (41.91 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 26" (66.04 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
| Working Temperature Range | -13 to 392°F (-25 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.08/0.19/0.27/0.3 kW (-20/-10/0/10 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, analog |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 3 to 4 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.5" (41.91 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 26" (66.04 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
