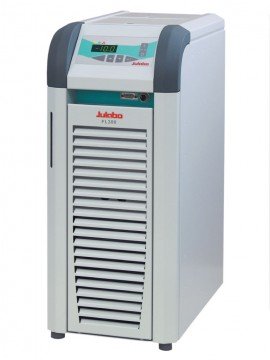

Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz

Modèle: 9660003 | No. de commande: 9660003.2

Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz-

Télécharger: datasheet manual

Plus de produits Julabo

Demander à un expert

Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz

Modèle: 9660003 | No. de commande: 9660003.2

Ideal for routine laboratory cooling applications, this recirculating chiller saves energy by providing proportional cooling control to adjust the cooling power to the load of the application. In addition, this chiller features an RS232 interface, alarm output for PC integration, and a splash-proof membrane keypad with a LED temperature display.

Ideal for routine laboratory cooling applications, this recirculating chiller saves energy by providing proportional cooling control to adjust the cooling power to the load of the application. In addition, this chiller features an RS232 interface, alarm output for PC integration, and a splash-proof membrane keypad with a LED temperature display.

Ce produit excède les dimensions/poids de livraison standard, donc il ne se qualifie pas pour la livraison gratuite et sera livrer directement du manufacturier. Nous vous contacterons avec vos frais de livraisons.

Prix spécial $14120.80 CAD
Prix régulier $14864.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Accessoires recommandées

Julabo 8930410 Insulation Tube, 0.55" inner diameter, 3.28' length-

Julabo 8930410 Insulation Tube, 0.55" inner diameter, 3.28' length

8930410

Julabo 8970520 Quad Distributing Adapters, M16 x 1, 2-pack-

Julabo 8970520 Quad Distributing Adapters, M16 x 1, 2-pack

8970520

Julabo 8980073 RS-232 Interface Cable, auxiliary connector, 8.2'-

Julabo 8980073 RS-232 Interface Cable, auxiliary connector, 8.2'

8980073

Julabo 8980074 RS-232 Interface Cable, auxiliary connector, 16.4'-

Julabo 8980074 RS-232 Interface Cable, auxiliary connector, 16.4'

8980074

Julabo 8970482 Tube Clamp, 2-pack-

Julabo 8970482 Tube Clamp, 2-pack

8970482

Julabo 8891407 EG Thermal Bath Fluid, 30 to 80°C, 5L -

Julabo 8891407 EG Thermal Bath Fluid, 30 to 80°C, 5L

8891407

Julabo 9660003 offre

Fill and drain easily, with this recirculating chiller which features a fill level indicator and overflow port on the back. In addition, this chiller features stainless steel and high-grade plastic construction with a stainless steel internal tank and centrifugal pressure pump for circulation to an external application.

Caractéristiques

  • Ergonomic design and easy operation
  • Splash-proof keypad
  • Large, bright LED display
  • Reliable microprocessor PID temperature control
  • Filling level indicator
  • Powerful immersion pumps, suitable for continuous operation
  • Permissible temperature in return line 80°C
  • Easy filling from the top with hinged protective lid
  • Low liquid level protection with optical and audible alarm signal
  • Integrated stainless steel bath tanks
  • Removable venting grid for cleaning of the condenser
  • Front drain
  • No side vents
  • RS232 interface for PC-connection
  • IP class according to IEC 60529: 21
  • Alarm output, potential-free change-over contact (maximum 30 V A)
  • Precise; PID Temperature control with set control parameters, temperature stability ±0.02 to ±0.2°C
  • Green technology; Development consistently applied environmentally friendly materials and technologies
  • 100% checked, 100% testing, 100% quality; Each circulator undergoes thorough quality testing before leaving the factory

Applications

  • Laboratory cooling

Spécifications pour le Julabo 9660003

Voltage 115 V/60 Hz (Nema N5-15 Plug)
Cooling of Compressor 1-stage air
Electronics Temperature control: PID1
Temperature display: LED
Temperature setting: Keypad
Temperature Values Setting the resolution of the temperature display: 0.1°C
Return flow temperature maximum: 80°C
Working temperature range: -20 to 40°C
Temperature stability: ±0.5°C
Ambient temperature: 5 to 40°C
Temperature display resolution: 0.1°C
Barbed Fittings Inner Diameter 0.026" (8⁄12 mm)
Filling Volume 101.44 to 152.16 oz (3 to 4.5 l), 0.34 lbs (155 g)
Pump Connections M16x1 male
Bath Stainless steel
Refrigerant R134a
Global Warming Potential for R134a 1430
Carbon Dioxide Equivalent 0.222 t
Pump Capacity Flow Rate: 15 l/min
Pressure: 5.1 bar
Other Sound pressure level: 55 dbA
Classification: Classification I (NFL)
IP Code: IP 21
Pump type: Centrifugal Pump
Dimensions 9.8 x 19.7 x 23.6" (24.89 x 50.03 x 59.94 cm)
Weight 77.2 lbs (35.01 kg)

What's included with the Julabo 9660003

  • Recirculating Chiller
  • 2 x Barbed Fittings
  • Two-Year Warranty
datasheet pour le Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz manual pour le Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz.

Julabo 8930410 Insulation Tube, 0.55" inner diameter, 3.28' length 8930410
The tube is designed to protect another tube's exterior. It's compatible with various tubing for versatile use.



Julabo 8970520 Quad Distributing Adapters, M16 x 1, 2-pack 8970520
The adapters help ensure constant water pressure and temperature to all outlets. Barbed fittings accommodate 0.3 or 0.5" (8 or 12 mm) or 0.5" (12.7 mm) inner diameter tubing.



Julabo 8980073 RS-232 Interface Cable, auxiliary connector, 8.2' 8980073
The cable is designed to provide connection to RS-232 interfaces. It has an auxiliary connector that ensures a secure connection.



Julabo 8980074 RS-232 Interface Cable, auxiliary connector, 16.4' 8980074
The cable is designed to provide connection to RS-232 interfaces. It has an auxiliary connector that ensures a secure connection.



Julabo 8970482 Tube Clamp, 2-pack 8970482
Ideal for ½" (12 mm) reinforced tubing, these clamps feature size 3.



Julabo 8891402 C5 Thermal Bath Fluid, -60 to 110°C, 10L 8891402
Guarantees safe and reliable operation for all of your temperature control applications. Features a flash point of >135°C.



Julabo 8891403 C5 Thermal Bath Fluid, -60 to 110°C, 5L 8891403
Guarantees safe and reliable operation for all of your temperature control applications. Features a flash point of >135°C.



Julabo 8891406 EG Thermal Bath Fluid, 30 to 80°C, 10L 8891406
Guarantees safe and reliable operation for all of your temperature control applications. Features a flash point of >120°C.



Julabo 8891407 EG Thermal Bath Fluid, 30 to 80°C, 5L 8891407
Guarantees safe and reliable operation for all of your temperature control applications. Features a flash point of >120°C.



Poser une question sur le Julabo 9660003 FL300 Recirculating Chiller, -20 to 40°C, 115 V/60 Hz
