INOR 70R1300011 offre

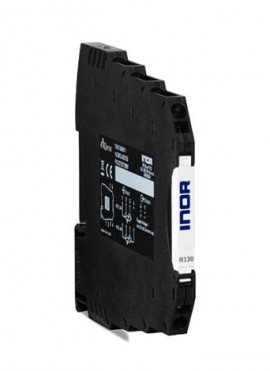

The APAQ R130 is a modern transmitter with high reliability and great performance. External influences such as ambient temperature, vibration, moisture and EMC interference have minimal influence on the measurement result, thanks to the robust design.
What characterizes the APAQ R130 is simplicity. You can easily configure the transmitters wirelessly via NFC with your smartphone or tablet. There is no need for expensive configuration tools or fixed workstations for transmitter configuration.

Caractéristiques

• Measurements with Pt100 & Pt1000 sensors in 2-,3-, 4-wire connection: APAQ R130 accepts inputs from Pt100 & Pt1000 sensors in 2-, 3-, 4-wire connections acc. to IEC 60751 (α=0.00385)
• Temperature linear output: Fully temperature linear 4-20 mA output.
• High accuracy: With an accuracy of ±0,15 K or ±0,15 % of span (the largest apply) APAQ R130 offers an outstanding performance in its class.
• Compact design for easy installation: The rail mounted variant is only 6.3 mm wide, allowing you to save valuable space in your cabinet.
• Reliable over time: Minimal drift of ±0.05°C or ±0.05% of span/ year reduces the need for calibration.
• Designed for harsh conditions: Rugged design tested for 5g vibrations.
• Adjustable filtering: For smoothing down instabilities on the input by adjusting the filtering level
• Wireless configuration: Configure APAQ R130 wirelessly with your smartphone without power supply and cables
• INOR Connect, easy-to-use app for configuration: The simple and user friendly app, INOR Connect, is used for transmitter configuration in seconds. All parameters are set in the app and then transferred to the transmitter via NFC.
