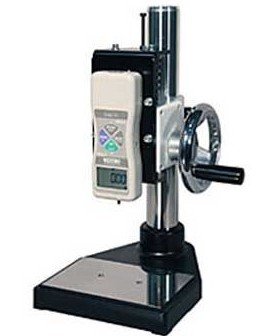

Offers precise movement with its handwheel operation, the vertical wheel test stand with distance meter has a capacity of 220 lbf. Provides repeatable test results compared to conventional by hand force measurements. It features all-metal construction.
Offers precise movement with its handwheel operation, the vertical wheel test stand with distance meter has a capacity of 220 lbf. Provides repeatable test results compared to conventional by hand force measurements. It features all-metal construction.
The vertical wheel test stand is ideal for applications requiring relatively consistent speed and maximum gauge control.
Caractéristiques
| Capacity | 220 lbf |
| Stroke | 2.36" (60 mm) |
| Travel | 3 mm per wheel rotation |
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1 mm whichever is greater |
| Capacity | 220 lbf |
| Stroke | 2.36" (60 mm) |
| Travel | 3 mm per wheel rotation |
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1 mm whichever is greater |
