Eliminates costs by identifying mis-tightened and defective screws and works in hard-to-reach places. It is ergonomically designed, extremely lightweight and good for use as a production tool. Capacity of 1.0 to 100.0 kgf-cm.
Eliminates costs by identifying mis-tightened and defective screws and works in hard-to-reach places. It is ergonomically designed, extremely lightweight and good for use as a production tool. Capacity of 1.0 to 100.0 kgf-cm.

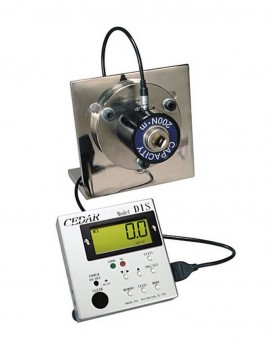

The instrument can be used to tighten or loosen screws up to 90 lbf-in. The remote sensor design allows it to be used in difficult to reach places. The DIS-RL can be used to evaluate torque controlled screwdrivers by doing comparative tests on a given fastener. Both breakaway and loosening tests can be performed. DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening of screws. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
Features
| Capacity | |
| lbf-in | 1.0 to 90.0 |
| kgf-cm | 1.0 to 100.0 |
| N-cm | 10 to 1000 |
| N-m | 0.10 to 10.00 |
| General Specifications | |
| Accuracy | ±0.5% FS, ±1 LSD |
| Dimensions | 4.13 x 3.93 x 1.57" |
| Capacity | |
| lbf-in | 1.0 to 90.0 |
| kgf-cm | 1.0 to 100.0 |
| N-cm | 10 to 1000 |
| N-m | 0.10 to 10.00 |
| General Specifications | |
| Accuracy | ±0.5% FS, ±1 LSD |
| Dimensions | 4.13 x 3.93 x 1.57" |
