Reusable 2‑port lever connector supporting a wide range of solid and stranded wires from 22 to 10 AWG (0.64 to 6 mm²), including copper-clad aluminum. Rated 600 V (1000 V in signs/fixtures) and 221°F (105°C), with clear housing, audible click-lock, and compact design for tight spaces. Pack of 100.
Reusable 2‑port lever connector supporting a wide range of solid and stranded wires from 22 to 10 AWG (0.64 to 6 mm²), including copper-clad aluminum. Rated 600 V (1000 V in signs/fixtures) and 221°F (105°C), with clear housing, audible click-lock, and compact design for tight spaces. Pack of 100.

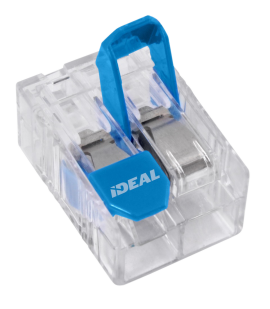

Experience fast and secure connections with IDEAL® In-Sure® Lever Connectors, 10 AWG, 2-Port. With a patented design, this 2-Port connector has an improved lever action, reducing the effort and strain on your hands. It provides the most extensive wire range in the industry, supporting solid and stranded wires with a reusable design from 10 AWG to 22 AWG, and copper-clad aluminum wires from 12-10 AWG. Be confident in your connection with our audible click-locking feature, a protective side wall to keep them locked in cramped spaces, and clear housing allowing visual inspections of each connection.
Caractéristiques
| Quantity | 100-pack |
| Maximum Rated Voltage | 600 V |
| Maximum Temperature | 221°F (105°C) |
| Flexible Skirt | No |
| Quantity | 100-pack |
| Maximum Rated Voltage | 600 V |
| Maximum Temperature | 221°F (105°C) |
| Flexible Skirt | No |
