With this clamp-on sensor, you can measure load current and commercial power lines with your compatible Micro HiLogger. The sensor is built to handle up to 100A AC.
With this clamp-on sensor, you can measure load current and commercial power lines with your compatible Micro HiLogger. The sensor is built to handle up to 100A AC.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:
Visitez notre catégorie AC Clamp Adapters pour trouver des produits similaires.
Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:

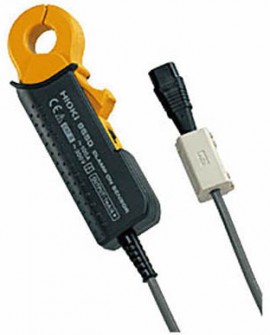

Use this Hioki 9650 Clamp-On AC Current Sensor with your compatible Hioki Micro HiLogger or clamp logger (sold separately) to accurately measure load current and commercial power lines. The sensor withstands current up to 100A AC.
Caractéristiques
| Compatibility | Hioki 8205-10 and 8206-10 Micro HiLoggers; Hioki 3636-20 clamp loggers |
| Rated Primary Current | 100A AC |
| Maximum Allowable Input | 130A AC continuous (45 to 66Hz) |
| Rated Output Current | 100mA AC |
| Amplitude Accuracy | ±1.5% of reading, ±0.03% of full scale (50/60Hz) |
| Phase Accuracy | No provision (cannot use with the electric power meter) |
| Frequency | 40Hz to 1kHz ±8% (add to amplitude accuracy) |
| Maximum Rated Voltage to Earth | 300Vrms AC (insulated wire) |
| Core Diameter | φ0.59in (15mm) |
| CE Compliant | Yes |
| Output | 2P plug terminal |
| Product Length | 0.83in (21mm) main unit, 9.84ft (3m) cord |
| Product Width | 1.81in (46mm) |
| Product Height | 5.31in (135mm) |
| Product Weight | 7.1oz (200g) |
| Compatibility | Hioki 8205-10 and 8206-10 Micro HiLoggers; Hioki 3636-20 clamp loggers |
| Rated Primary Current | 100A AC |
| Maximum Allowable Input | 130A AC continuous (45 to 66Hz) |
| Rated Output Current | 100mA AC |
| Amplitude Accuracy | ±1.5% of reading, ±0.03% of full scale (50/60Hz) |
| Phase Accuracy | No provision (cannot use with the electric power meter) |
| Frequency | 40Hz to 1kHz ±8% (add to amplitude accuracy) |
| Maximum Rated Voltage to Earth | 300Vrms AC (insulated wire) |
| Core Diameter | φ0.59in (15mm) |
| CE Compliant | Yes |
| Output | 2P plug terminal |
| Product Length | 0.83in (21mm) main unit, 9.84ft (3m) cord |
| Product Width | 1.81in (46mm) |
| Product Height | 5.31in (135mm) |
| Product Weight | 7.1oz (200g) |
