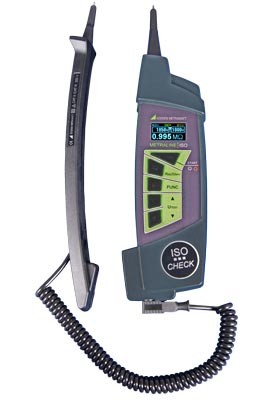

Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V

Modèle: METRALINE ISOCHECK | No. de commande: M507C

Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V-

Télécharger: datasheet manual

Plus de produits Gossen Metrawatt

Demander à un expert

Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V

Modèle: METRALINE ISOCHECK | No. de commande: M507C

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

Prix spécial $1100.19 CAD
Prix régulier $1209.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre M507C

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre M507C

Accessoires recommandées

Gossen Metrawatt Z507A Battery Charger, 180 mA-

Gossen Metrawatt Z507A Battery Charger, 180 mA

Z507A

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4-

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4

Z507B

Gossen Metrawatt METRALINE ISOCHECK Offers

Features

  • Insulation resistance measurement with test voltages of 50 to 1000 V
  • Voltage measurement up to 600 V
  • Measurement of surge protection devices with test voltages of 50 to 1000 V
  • Table of common varistors can be displayed
  • Digital display, backlit color OLED display
  • Indication of dangerous touch voltage
  • LED for measurement point illumination
  • Patented means of securing test probes
  • Compact and rugged: For service calls under harsh conditions and laboratory use

Applications

  • Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V depending upon variant
  • Measurement of surge protection devices, up to 1000 V depending upon variant
  • Checking of test objects for absence of voltage

Gossen Metrawatt METRALINE ISOCHECK Specifications

Operating Temperature 0 to 40°C
Relative Humidity max. 85%, no condensation allowed
Power Supply 4 ea. AAA (LR03), 1.5 V alkaline or 1.2V NIMH (with at least 750 mAh)
Display OLED, multicolored, graphic
Dimensions approx. 260 x 70 x 40 mm
Weight approx. 0.36 kg with batteries
Protection Housing: IP43
Cliquer ici pour toutes les spécifications du Gossen Metrawatt METRALINE ISOCHECK

What's included with the Gossen Metrawatt METRALINE ISOCHECK

  • Tester
  • Factory Calibrated Certificate
  • Probes
  • 4 x Batteries
  • CD ROM
  • Operating Instructions
datasheet pour le Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V manual pour le Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V.

Gossen Metrawatt Z507A Battery Charger, 180 mA Z507A
Charger used for the rechargeable batteries of the Metraline Check Series.



Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4 Z507B
Optional batteries for the Metraline Check Testers.
