Provides reliable measuring results with a measuring current of 200 mA and automatic functions. Measurement cables of almost any length can be used thanks to the offset balancing function, which compensates for measurement cable resistance.
Provides reliable measuring results with a measuring current of 200 mA and automatic functions. Measurement cables of almost any length can be used thanks to the offset balancing function, which compensates for measurement cable resistance.

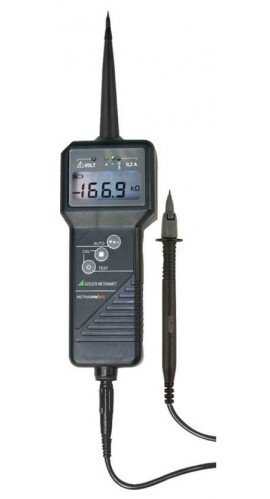

The METRAOHM 413 is a handheld battery powered digital instrument that is ideal for the measurement of low-value resistance in electrical systems. It can be used to test large protective conductors, grounds, equipotential bonding, and lightning protection systems. Resistance is measured between reference earth and any desired point.
Caractéristiques
| Characteristic Values | |
| Measuring Ranges | 10Ω (Lo-Ω); 100, 2000Ω; 20, 200, 2000 kΩ |
| Resolution | 0,01Ω; 0,1 to 1Ω; 0.01 to 1kΩ |
| Accuracy | ±(1.5% rdg. + 4 digits) at 20°C |
| Measuring Current | 10Ω (Lo-Ω): 200 mA 100Ω: 20 mA further ranges: 1 µA to 20 mA |
| Open-Circuit Voltage | > 4 V |
| Display | |
| Digital display | LCD, 10 mm high, 3 1/2 places, with background illumination |
| Battery Status | indicated by 2 segments on the LCD |
| Ambient Conditions | |
| Reference Temperature | 20°C |
| Storage Temperature | –10 to 70°C |
| Operating Temperature | –10 to 50°C |
| Characteristic Values | |
| Measuring Ranges | 10Ω (Lo-Ω); 100, 2000Ω; 20, 200, 2000 kΩ |
| Resolution | 0,01Ω; 0,1 to 1Ω; 0.01 to 1kΩ |
| Accuracy | ±(1.5% rdg. + 4 digits) at 20°C |
| Measuring Current | 10Ω (Lo-Ω): 200 mA 100Ω: 20 mA further ranges: 1 µA to 20 mA |
| Open-Circuit Voltage | > 4 V |
| Display | |
| Digital display | LCD, 10 mm high, 3 1/2 places, with background illumination |
| Battery Status | indicated by 2 segments on the LCD |
| Ambient Conditions | |
| Reference Temperature | 20°C |
| Storage Temperature | –10 to 70°C |
| Operating Temperature | –10 to 50°C |
