This integrated multimeter and calibrator makes it possible for technicians to simulate sensor conditions at the inputs of transducers, transmitters, and buffer amplifiers. At the same time, it will accurately measure the electrically isolated signal output and save results to internal memory.
This integrated multimeter and calibrator makes it possible for technicians to simulate sensor conditions at the inputs of transducers, transmitters, and buffer amplifiers. At the same time, it will accurately measure the electrically isolated signal output and save results to internal memory.

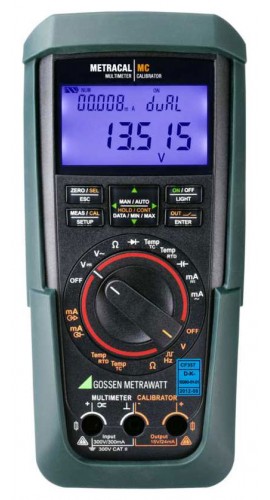

The MetraCal MC is an extremely compact and cost-effective multi-functional process calibrator. It streamlines measuring, calibration, and inspection work in manufacturing and R&D. The MetraCal MC can also be used in the production of electronic measuring transducers, and when balancing and calibrating metrology components.
Features
Applications
| Calibration Functions | Direct Voltage Source: V, Pulse / Frequency Generator, Hz Current Source: mA Current Sink: mA Resistance Simulation |
| Temperature Sensor Simulation | Resistance Thermometer per IEC 751: Pt100, Pt1000 Resistance Thermometer per DIN 43760: Ni100, Ni1000, RTD Sensor Current Thermocouples per DIN and IEC 584-1: K (NiCr/Ni), J (Fe/CuNi), T (Cu/CuNi), B (Pt30Rh/Pt6Rh), E (NiCr/CuNi), R (Pt13Rh/Pt), N (CU/Cu10), S (Pt10Rh/Pt), J (Fe/CuNi), U (Cu/CuNi) |
| Multimeter Selections | V, mA, Resistance, F, Hz |
| Display | LCD panel (65 x 35 mm) with display of up to 3 measured values, unit of measure, type of current and various special functions |
| Electrical Safety Ratings | Protection Class: II per EN 61010-1:2001/VDE 0411-1:2002 Measuring Category: II Operating Voltage: 300V Pollution Degree: 2 Test Voltage: 2.2 kV~ per EN 61010-1:2001/VDE 0411-1:2002 |
| Calibration Functions | Direct Voltage Source: V, Pulse / Frequency Generator, Hz Current Source: mA Current Sink: mA Resistance Simulation |
| Temperature Sensor Simulation | Resistance Thermometer per IEC 751: Pt100, Pt1000 Resistance Thermometer per DIN 43760: Ni100, Ni1000, RTD Sensor Current Thermocouples per DIN and IEC 584-1: K (NiCr/Ni), J (Fe/CuNi), T (Cu/CuNi), B (Pt30Rh/Pt6Rh), E (NiCr/CuNi), R (Pt13Rh/Pt), N (CU/Cu10), S (Pt10Rh/Pt), J (Fe/CuNi), U (Cu/CuNi) |
| Multimeter Selections | V, mA, Resistance, F, Hz |
| Display | LCD panel (65 x 35 mm) with display of up to 3 measured values, unit of measure, type of current and various special functions |
| Electrical Safety Ratings | Protection Class: II per EN 61010-1:2001/VDE 0411-1:2002 Measuring Category: II Operating Voltage: 300V Pollution Degree: 2 Test Voltage: 2.2 kV~ per EN 61010-1:2001/VDE 0411-1:2002 |
