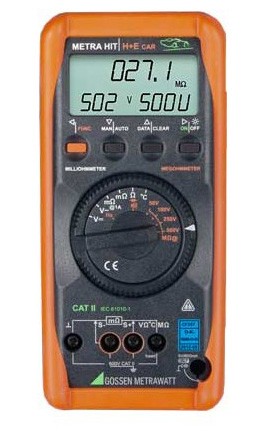

Gossen Metrawatt M227U METRAHit H+E CAR Set Multimeter Kit for service and repair of electronic and hybrid cars

Modèle: M227U

Gossen Metrawatt M227U METRAHit H+E CAR Set Multimeter Kit for service and repair of electronic and hybrid cars-

Télécharger: datasheet manual

Plus de produits Gossen Metrawatt

Demander à un expert

Gossen Metrawatt M227U METRAHit H+E CAR Set Multimeter Kit for service and repair of electronic and hybrid cars

Modèle: M227U

This three in one meter is integrated for measurements up through the gigaohm range. It is to be used to test and repair electronic and hybrid cars. Also comes with Hybrid-Diagnostic Kit.

This three in one meter is integrated for measurements up through the gigaohm range. It is to be used to test and repair electronic and hybrid cars. Also comes with Hybrid-Diagnostic Kit.

Discontinué!

Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:

Visitez notre catégorie Digital Multimeters pour trouver des produits similaires.

Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:

Accessoires recommandées

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software-

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software

GTZ3240000R0001

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag-

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag

Z115A

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC-

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC

Z202B

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC-

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC

Z203B

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters-

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters

Z216A

Gossen Metrawatt M227U Offers

Features

  • Kelvin connection (4-wire measurement)
  • DATA hold memory for up to 1200 measured values
  • Continuity and diode testing
  • Overload protection
  • LCD including background illumination

Applications

Ideal for the following applications: Hybrid and Electronic Car Service and Repair.

Gossen Metrawatt M227U Specifications

Insulation Resistance Measurement 30.00MΩ to 3.000GΩ with adjustable test voltage of 50, 100, 250 or 500V
Milliohmmeter 3.000MΩ to 300.00MΩ with 1A measuring current and 30.00MΩ to 30.00Ω with 200mA measuring current
Resistance Measurement (Hz) 300Ω to 30MΩ
Voltage Measurement 3 to 600V DC and 3 to 600V AC with ±30.000 digits
Frequency Measurement 300Hz to 3kHz
Cliquer ici pour toutes les spécifications du Gossen Metrawatt M227U

What's included with the Gossen Metrawatt M227U

  • METRAHIT M227U Meter
  • Protective rubber cover orange
  • 3 size AA NiMH storage batteries
  • NA HIT 27 mains power adapter
  • Operating instructions D/GB/F
  • DAkkS calibration certificate
  • Hybrid Diagnostic Kit with test probes, lantern fronted probes, measuring cables and kelvin measuring cables with crocodile clips
