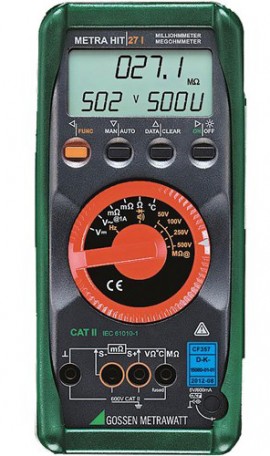

Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester

Modèle: M227S

Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester-

Télécharger: datasheet

Plus de produits Gossen Metrawatt

Demander à un expert

Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester

Modèle: M227S

This three in one meter is integrated for measurements up through the gigaohm range. It features an overload protection and a DATA hold memory for up to 1200 measured values.

This three in one meter is integrated for measurements up through the gigaohm range. It features an overload protection and a DATA hold memory for up to 1200 measured values.

Discontinué!

Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:

Visitez notre catégorie Insulation Multimeters pour trouver des produits similaires.

Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:

Accessoires recommandées

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software-

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software

GTZ3240000R0001

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag-

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag

Z115A

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC-

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC

Z202B

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC-

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC

Z203B

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters-

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters

Z216A

Gossen Metrawatt M227S Offers

Features

  • Kelvin connection (4-wire measurement)
  • DATA hold memory for up to 1200 measured values
  • Continuity and diode testing
  • Overload protection
  • LCD including background illumination

Applications

Ideal for the following applications: Aviation and Aircraft Testing.

Gossen Metrawatt M227S Specifications

Insulation Resistance Measurement 30.00MΩ to 3.000GΩ with adjustable test voltage of 50, 100, 250 or 500V
Milliohmmeter 3.000MΩ to 300.00MΩ with 1A measuring current and 30.00MΩ to 30.00Ω with 200mA measuring current
Resistance Measurement (Hz) 300Ω to 30MΩ
Voltage Measurement 3 to 600V DC and 3 to 600V AC with ±30.000 digits
Frequency Measurement 300Hz to 3kHz
Cliquer ici pour toutes les spécifications du Gossen Metrawatt M227S

What's included with the Gossen Metrawatt M227S

  • METRAHIT 27I M227S Meter
  • Protective rubber cover green
  • 3 size AA NiMH storage batteries
  • NA HIT 27 mains power battery charger
  • KS17-2 measurement cable set
  • Set of Kelvin clips KC4 (1 set = 2 each)
  • HC30 hard case
  • Abbreviated operating instructions
  • Operating instructions D/GB/F
  • DAkkS calibration certificate
datasheet pour le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester.

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software GTZ3240000R0001
Any METRAHit multimeter can be transformed into a professional, PC-based universal recording system with METRAwin 10 software, and an interface adapter.



Gossen Metrawatt Z115A HitBag Multimeter Travel Bag Z115A
Cordura belt bag for the METRAHit series of multimeters.



Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC Z202B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC Z203B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters Z216A
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt Z216B USB-PACK Interface Adapter for METRAHit Multimeters with software Z216B
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Poser une question sur le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester

Gossen Metrawatt M227S Offers

Features

  • Kelvin connection (4-wire measurement)
  • DATA hold memory for up to 1200 measured values
  • Continuity and diode testing
  • Overload protection
  • LCD including background illumination

Applications

Ideal for the following applications: Aviation and Aircraft Testing.

En savoir plus...

Gossen Metrawatt M227S Specifications

Insulation Resistance Measurement 30.00MΩ to 3.000GΩ with adjustable test voltage of 50, 100, 250 or 500V
Milliohmmeter 3.000MΩ to 300.00MΩ with 1A measuring current and 30.00MΩ to 30.00Ω with 200mA measuring current
Resistance Measurement (Hz) 300Ω to 30MΩ
Voltage Measurement 3 to 600V DC and 3 to 600V AC with ±30.000 digits
Frequency Measurement 300Hz to 3kHz
Cliquer ici pour toutes les spécifications du Gossen Metrawatt M227S

What's included with the Gossen Metrawatt M227S

  • METRAHIT 27I M227S Meter
  • Protective rubber cover green
  • 3 size AA NiMH storage batteries
  • NA HIT 27 mains power battery charger
  • KS17-2 measurement cable set
  • Set of Kelvin clips KC4 (1 set = 2 each)
  • HC30 hard case
  • Abbreviated operating instructions
  • Operating instructions D/GB/F
  • DAkkS calibration certificate
datasheet pour le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester.

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software GTZ3240000R0001
Any METRAHit multimeter can be transformed into a professional, PC-based universal recording system with METRAwin 10 software, and an interface adapter.



Gossen Metrawatt Z115A HitBag Multimeter Travel Bag Z115A
Cordura belt bag for the METRAHit series of multimeters.



Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC Z202B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC Z203B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters Z216A
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt Z216B USB-PACK Interface Adapter for METRAHit Multimeters with software Z216B
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Poser une question sur le Gossen Metrawatt M227S METRAHit 27I Set Milliohmmeter, Multimeter and Insulation Tester
