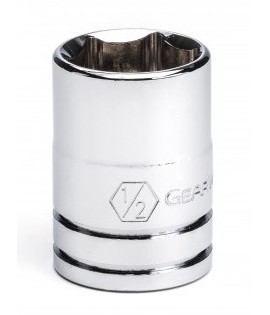

Present a chamfered opening, this 6-point standard SAE socket has hard-stamped size markings with ½" fastener size.
Present a chamfered opening, this 6-point standard SAE socket has hard-stamped size markings with ½" fastener size.
The 6-point standard ⅜" drive SAE socket ½" meets or exceeds ASME specifications.
Features
| Overall Length | 0.984" |
| SAE/Metric/Torx | SAE |
| ASME Specification | B107.1 |
| Fastener Size | ½" |
| Drive Type | 6 Point |
| Drive Tang Size | ⅜" |
| Length Format | Standard |
| Dim. A: Drive End | 0.705" |
| Dim. C: Overall Length | 0.984" |
| Dim. F: Length to Shoulder | 0.453" |
| Dim. D: Bolt Clearance | 0.354" |
| Dim. E: Wrench Depth | 0.295" |
| Dim. B: Wrench End | 0.685" |
| Finish | Full Polish Chrome |
| Material | Alloy Steel |
| Weight | 0.07 lb |
