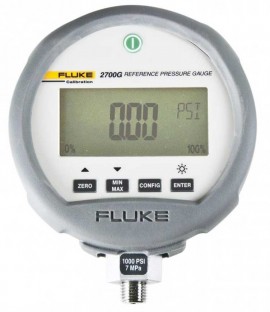

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Rugged and easy to use. Ideal for a wide variety of applications and offers best in class measurement performance suitable for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches.
Rugged and easy to use. Ideal for a wide variety of applications and offers best in class measurement performance suitable for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches.
Can be combined with the P5500 series of comparison test pumps to make a complete pressure calibration system. The unique test port design of the P5500 series allows for a hand tight connection without the use of PTFE tape.
Features
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model number | 754 | 721/721Ex | 719Pro | 719 | 718 | 717 | 700G | 3130 | 2700G | Dead-weight Testers |
| Application | ||||||||||
| Calibrating pressure transmitters (field) | ● | ● | Ideal | ● | ● | ● | ● | |||
| Calibrating pressure transmitters (bench) | ● | ● | ● | ● | ● | ● | Ideal | ● | ||
| Calibrating HART Smart transmitters | Ideal | |||||||||
| Documenting pressure transmitter calibrations | Ideal | |||||||||
| Testing pressure switches in the field | Ideal | ● | ● | ● | ● | ● | ● | |||
| Testing pressure switches on the bench | ● | ● | ● | ● | ● | ● | Ideal | |||
| Documenting pressure switch tests | Ideal | |||||||||
| Testing pressure switches with live (voltage) contacts | Ideal | |||||||||
| Gas custody transfer computer tests | ● | Ideal | ● | |||||||
| Verifying process pressure gauges (field) | Ideal | ● | ● | ● | ● | ● | ● | |||
| Verifying process pressure gauges (bench) | ● | ● | ● | ● | ● | ● | ● | ● | Ideal | |
| Logging pressure measurements | ● | Ideal | ● | |||||||
| Testing pressure devices using a reference gauge | Ideal | |||||||||
| Hydrostatic vessel testing | Ideal | |||||||||
| Leak testing (pressure measurement logging) | ● | Ideal | ||||||||
| Pressure Connection | 1/4 in NPT Male |
| Housing | Cast ZNAL |
| Display | 5-1/2 digits, 16.53 mm (0.65") high 20-segment bar graph, 0 to 100% |
| Range | -12 to 300 psi, -80 kPa to 2 MPa |
| Resolution | 0.01 psi, 0.001 bar |
| Uncertainty (k=2) | Positive Pressure: ±0.02% FS Vacuum: ±0.05% FS |
| Burst Pressure | 2000 psi, 14 MPa |
| Media Compatibility | Note 2 |
| Power Source | 3 x AA Alkaline Batteries |
| Battery Life | 75 hours |
| Weight | 0.56 kg (1.22 lbs) |
| Dimensions | 12.7 x 11.4 x 3.7cm (5 x 4.5 x 1.5") |
Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Fluke 2700G Series Digital Pressure Gauge, -12 to 300 psi with accreditation, 4.5" dial, ¼" NPT male, bottomcast ZNAL housing.
| Pressure Connection | 1/4 in NPT Male |
| Housing | Cast ZNAL |
| Display | 5-1/2 digits, 16.53 mm (0.65") high 20-segment bar graph, 0 to 100% |
| Range | -12 to 300 psi, -80 kPa to 2 MPa |
| Resolution | 0.01 psi, 0.001 bar |
| Uncertainty (k=2) | Positive Pressure: ±0.02% FS Vacuum: ±0.05% FS |
| Burst Pressure | 2000 psi, 14 MPa |
| Media Compatibility | Note 2 |
| Power Source | 3 x AA Alkaline Batteries |
| Battery Life | 75 hours |
| Weight | 0.56 kg (1.22 lbs) |
| Dimensions | 12.7 x 11.4 x 3.7cm (5 x 4.5 x 1.5") |
