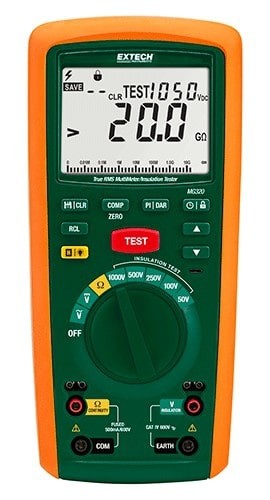

Test insulation and check the voltage with this instrument that combines a CAT IV Insulation Tester and a 20 GΩ True RMS Multimeter. Complete with PI/DAR modes, a programmable timer, and a comparator for custom test configurations, this multimeter is versatile and provides quick insulation test results. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Test insulation and check the voltage with this instrument that combines a CAT IV Insulation Tester and a 20 GΩ True RMS Multimeter. Complete with PI/DAR modes, a programmable timer, and a comparator for custom test configurations, this multimeter is versatile and provides quick insulation test results. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Features
| Insulation Resistance Range/Resolution | 50 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 2000 MΩ, 1 GΩ, 10 GΩ, 20 GΩ, 0.01 MΩ |
| Basic Accuracy | ±3% |
| Insulation Test Voltages Range | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Basic Accuracy | 0 to 10% |
| AC/DC Voltage Range/Resolution | 600 V / 0.1 V |
| Basic Accuracy | ±2% |
| Resistance Range/Resolution | 20 kΩ / 0.01 Ω/td> |
| Basic Accuracy | ±1.5% |
| Continuity | Yes |
| Dimensions | 8.9 x 4.1 x 2.3" (225 x 103 x 59 mm) |
| Weight | 1.5 lbs (0.7kg) |
