Essential for demanding workplaces, this rugged True RMS industrial multimeter features CAT IV-600 V safety and IP67 waterproof/dustproof ratings, being an ideal solution for heavy-duty tasks. Additionally, it boasts a 10 A maximum current capacity and 1000 V input protection for all functions. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Essential for demanding workplaces, this rugged True RMS industrial multimeter features CAT IV-600 V safety and IP67 waterproof/dustproof ratings, being an ideal solution for heavy-duty tasks. Additionally, it boasts a 10 A maximum current capacity and 1000 V input protection for all functions. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.

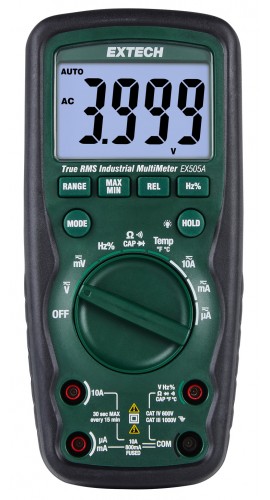

The EX5xxA Series offers a range of high-performance True RMS industrial multimeters, each designed to meet specific needs in electrical testing.
All models in the EX5xxA Series come with double-molded test leads, a 9 V battery, a magnetic hanging strap, a temperature probe, a carrying case, and a three-year warranty. They are designed for electricians, HVAC/R technicians, and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Caractéristiques
Applications
| True Rms | Yes |
| Display Counts | 6000 |
| Basic Accuracy | ±0.5% |
| Voltage | AC: 0.01 mV to 1000 V DC: 0.01 mV to 1000 V |
| Current | AC: 0.1 μA to 10 A DC: 0.1 μA to 10 A |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.01 nF to 99.99 mF |
| Frequency | Electrical: 0.001 Hz to 10 MHz Electronic: 0.01 Hz to 1 kHz |
| Temperature | Type K: -4 to 1400°F (-20 to 760°C) Operating: 32 to 122°F (0 to 50°C) |
| Duty Cycle | 0.1 to 99.9% |
| Diode/Continuity | Yes |
| Backlight | Yes |
| Range | Yes |
| Relative | Yes |
| Auto Power Off | Yes |
| Waterproof | IP67 |
| Drop Proof | 6.5' (2 m) |
| Safety Category | CAT IV-600 V |
| Dimensions | 7.1 × 3.2 × 2.1" (183 × 83 × 55 mm) |
| Weight | 12.9 oz (365 g) |
| True Rms | Yes |
| Display Counts | 6000 |
| Basic Accuracy | ±0.5% |
| Voltage | AC: 0.01 mV to 1000 V DC: 0.01 mV to 1000 V |
| Current | AC: 0.1 μA to 10 A DC: 0.1 μA to 10 A |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.01 nF to 99.99 mF |
| Frequency | Electrical: 0.001 Hz to 10 MHz Electronic: 0.01 Hz to 1 kHz |
| Temperature | Type K: -4 to 1400°F (-20 to 760°C) Operating: 32 to 122°F (0 to 50°C) |
| Duty Cycle | 0.1 to 99.9% |
| Diode/Continuity | Yes |
| Backlight | Yes |
| Range | Yes |
| Relative | Yes |
| Auto Power Off | Yes |
| Waterproof | IP67 |
| Drop Proof | 6.5' (2 m) |
| Safety Category | CAT IV-600 V |
| Dimensions | 7.1 × 3.2 × 2.1" (183 × 83 × 55 mm) |
| Weight | 12.9 oz (365 g) |
