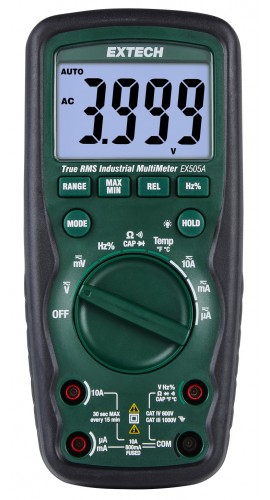

Essential for demanding workplaces, this rugged True RMS industrial multimeter features CAT IV-600 V safety and IP67 waterproof/dustproof ratings, being an ideal solution for heavy-duty tasks. Additionally, it boasts a 10 A maximum current capacity and 1000 V input protection for all functions.
Essential for demanding workplaces, this rugged True RMS industrial multimeter features CAT IV-600 V safety and IP67 waterproof/dustproof ratings, being an ideal solution for heavy-duty tasks. Additionally, it boasts a 10 A maximum current capacity and 1000 V input protection for all functions.
The EX5xxA Series offers a range of high-performance True RMS industrial multimeters, each designed to meet specific needs in electrical testing.
All models in the EX5xxA Series come with double-molded test leads, a 9 V battery, a magnetic hanging strap, a temperature probe, a carrying case, and a three-year warranty. They are designed for electricians, HVAC/R technicians, and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
Caractéristiques
Applications
| True RMS | Yes |
| Display Counts | 6000 |
| Basic Accuracy | ±0.5% |
| Voltage | AC: 0.01 mV to 1000 V DC: 0.01 mV to 1000 V |
| Current | AC: 0.1 μA to 10 A DC: 0.1 μA to 10 A |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.01 nF to 99.99 mF |
| Frequency | Electrical: 0.001 Hz to 10 MHz Electronic: 0.01 Hz to 1 kHz |
| Temperature | Type K: -4 to 1400°F (-20 to 760°C) Operating: 32 to 122°F (0 to 50°C) |
| Duty Cycle | 0.1 to 99.9% |
| Diode/Continuity | Yes |
| Backlight | Yes |
| Range | Yes |
| Relative | Yes |
| Auto Power Off | Yes |
| Waterproof | IP67 |
| Drop Proof | 6.5' (2 m) |
| Safety Category | CAT IV-600 V |
| Dimensions | 7.1 × 3.2 × 2.1" (183 × 83 × 55 mm) |
| Weight | 12.9 oz (365 g) |
| True RMS | Yes |
| Display Counts | 6000 |
| Basic Accuracy | ±0.5% |
| Voltage | AC: 0.01 mV to 1000 V DC: 0.01 mV to 1000 V |
| Current | AC: 0.1 μA to 10 A DC: 0.1 μA to 10 A |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.01 nF to 99.99 mF |
| Frequency | Electrical: 0.001 Hz to 10 MHz Electronic: 0.01 Hz to 1 kHz |
| Temperature | Type K: -4 to 1400°F (-20 to 760°C) Operating: 32 to 122°F (0 to 50°C) |
| Duty Cycle | 0.1 to 99.9% |
| Diode/Continuity | Yes |
| Backlight | Yes |
| Range | Yes |
| Relative | Yes |
| Auto Power Off | Yes |
| Waterproof | IP67 |
| Drop Proof | 6.5' (2 m) |
| Safety Category | CAT IV-600 V |
| Dimensions | 7.1 × 3.2 × 2.1" (183 × 83 × 55 mm) |
| Weight | 12.9 oz (365 g) |
