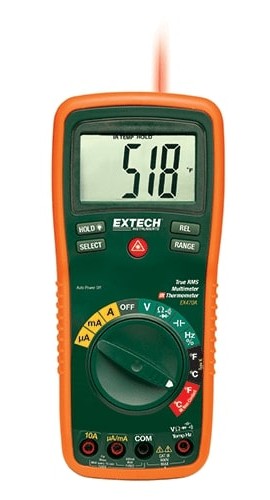

Designed for HVAC and plant maintenance, the multimeter and Infrared thermometer measure surface temperatures from -4 to 518°F without the need for contact. The device is equipped with a large-digit backlit LCD as well as a built-in laser pointer, which centers the measuring area.
Designed for HVAC and plant maintenance, the multimeter and Infrared thermometer measure surface temperatures from -4 to 518°F without the need for contact. The device is equipped with a large-digit backlit LCD as well as a built-in laser pointer, which centers the measuring area.
Features
Applications
| Temperature | IR: 58 to 518°F (-50 to 270°C) Type K: -4 to 1382°F (-20 to 750°C) |
| Basic Accuracy (VDC) | ±0.3% |
| AC Voltage | 0.1 mV to 600 V |
| DC Voltage | 0.1 mV to 600 V |
| AC Current | 0.1 ΦA to 10 A |
| DC Current | 0.1 ΦA to 10 A |
| Resistance | 0.1 Ω to 40 MΩ |
| Capacitance | 0.01 nF to 100 ΦF |
| Frequency | 0.001 Hz to 10 MHz |
| Duty Cycle | 0.1% to 99.9% |
| Dimensions | 7.4 x 3.2 x 2" (187 x 81 x 50 mm) |
| Weight | 0.75 lbs. (342 g) |
