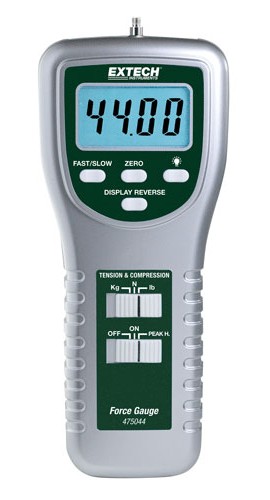

Perform push/pull measurements in pounds, kilograms, and Newtons with this high-capacity force gauge, and easily view on its 5-digit LCD with reversible display feature to match viewing angle. In addition, this force gauge is ideal for applications in electronics, automotive, chemical, plastics, and machinery industries.
Perform push/pull measurements in pounds, kilograms, and Newtons with this high-capacity force gauge, and easily view on its 5-digit LCD with reversible display feature to match viewing angle. In addition, this force gauge is ideal for applications in electronics, automotive, chemical, plastics, and machinery industries.
Features
Applications
Ideal for a wide variety of applications in the electronics, automotive, chemical, plastics, and machinery industries.
| Range | 44 lbs, 20 kg, 196 N |
| Accuracy (73°F [23°C]) | ±(0.5% + 2 digit) |
| Resolution | 0.01 lbs, 0.01 kg, 0.05 N |
| Overload Capacity | 30 kg |
| Update Rate | Fast mode: 0.2 seconds Slow mode: 0.6 seconds |
| Full Scale Deflection | 2.00 mm |
| Transducer Type | Load cell |
| Peak Hold | Freezes maximum reading on display |
| Display | 5 digits, 0.4" (10 mm) LCD display |
| Power Supply | 6 x 1.5 V AA (UM-3) batteries or DC 9 V adapter (not included) |
| Dimensions | 8.9 x 3.3 x 1.5" (227 x 83 x 39 mm) |
| Weight | 1.2 lbs (551 g) |
| Range | 44 lbs, 20 kg, 196 N |
| Accuracy (73°F [23°C]) | ±(0.5% + 2 digit) |
| Resolution | 0.01 lbs, 0.01 kg, 0.05 N |
| Overload Capacity | 30 kg |
| Update Rate | Fast mode: 0.2 seconds Slow mode: 0.6 seconds |
| Full Scale Deflection | 2.00 mm |
| Transducer Type | Load cell |
| Peak Hold | Freezes maximum reading on display |
| Display | 5 digits, 0.4" (10 mm) LCD display |
| Power Supply | 6 x 1.5 V AA (UM-3) batteries or DC 9 V adapter (not included) |
| Dimensions | 8.9 x 3.3 x 1.5" (227 x 83 x 39 mm) |
| Weight | 1.2 lbs (551 g) |
