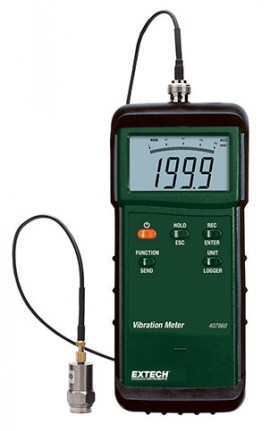

The heavy duty vibration meter measures velocity, acceleration, and displacement in RMS or peak value mode, with max./min., data hold, and auto-off. Measures displacement from 0.001" to 0.078". It offers automatic or manual store/recall up to 500 readings and is compatible with Extech 407001 Data Acquisition Software and Serial Cable (sold separately).
The heavy duty vibration meter measures velocity, acceleration, and displacement in RMS or peak value mode, with max./min., data hold, and auto-off. Measures displacement from 0.001" to 0.078". It offers automatic or manual store/recall up to 500 readings and is compatible with Extech 407001 Data Acquisition Software and Serial Cable (sold separately).
Features
Applications
| Acceleration (max res) | 656ft/s2 (2ft/s2) or 200m/s2 (0.5m/s2) |
| Velocity (max res) | 7.87in/s (0.02in/s) or 200mm/s (0.5mm/s) |
| Displacement (max res) | 0.078in (0.001in) or 1.999mm (0.001mm) |
| Basic accuracy | ±5% |
| Dimensions (meter) | 7.1x2.9x1.3" (180x72x32mm) |
| Weight (with probe) | 0.87lbs (395g) |
| Acceleration (max res) | 656ft/s2 (2ft/s2) or 200m/s2 (0.5m/s2) |
| Velocity (max res) | 7.87in/s (0.02in/s) or 200mm/s (0.5mm/s) |
| Displacement (max res) | 0.078in (0.001in) or 1.999mm (0.001mm) |
| Basic accuracy | ±5% |
| Dimensions (meter) | 7.1x2.9x1.3" (180x72x32mm) |
| Weight (with probe) | 0.87lbs (395g) |
