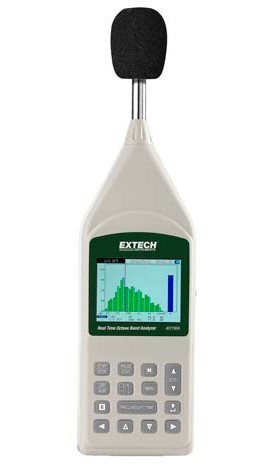

Monitor and analyze noise from any source, such as machinery or vehicles, with this octave band analyzer. Offering a wide range of measurements with precise linearity (100 dB), the unit stores readings on a microSD card and transfers the data to a PC to be analyzed using software and cable provided. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Monitor and analyze noise from any source, such as machinery or vehicles, with this octave band analyzer. Offering a wide range of measurements with precise linearity (100 dB), the unit stores readings on a microSD card and transfers the data to a PC to be analyzed using software and cable provided. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Features
| Accuracy | ±1.5 dB (ref 94 dB at 1 kHz) |
| Measurement Functions | Lp, Leq, LE, Lmax, Lmin, L05, L10, L50, L90, L95, |
| Frequency Range | 25 Hz to 10 kHz |
| Frequency Weighting | A, C, and Z |
| Time Weighting | Fast, slow, 10 ms, I |
| Display | 3.5" (89 mm) 320 x 240 Displays 1/1, 1/3, 1/1 and 1/3 |
| Signal Output | AC output: 1 Vrms (at full scale) DC output: 3.0 V, 25 mV/dB |
| Memory | MicroSD card (included) |
| Power | 4 x type C size 1.5 V batteries External DC power: 6 V, 1 A |
| Applicable Standards | ANSI S1.4 Type 2, EN IEC 60651, EN IEC 60804, and EN IEC 1260-1995 |
