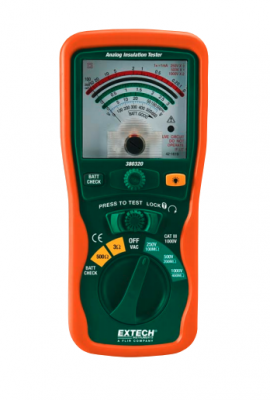

With a large and easy-to-read analog display, this insulation tester features a live circuit warning that displays actual AC voltage measurements. Also featured are an automatic discharge circuit, a lock power-on feature for extended test times, and insulation resistance up to 400 MΩ.
With a large and easy-to-read analog display, this insulation tester features a live circuit warning that displays actual AC voltage measurements. Also featured are an automatic discharge circuit, a lock power-on feature for extended test times, and insulation resistance up to 400 MΩ.
| Test Voltages | 250 V, 500 V, 1000 V |
| Insulation Resistance Range | 100 MΩ, 200 MΩ, 400 MΩ |
| Accuracy | ±5% of scale |
| AC Voltage Range | 0 to 600 V |
| Accuracy | ±5% of scale |
| Resistance Range | 1 to 500 Ω |
| Accuracy | ±3% of scale |
| Continuity | 3 |
| Accuracy | ±3% of scale |
| Dimensions | 7.9 x 3.6 x 2" (200 x 92 x 50 mm) |
| Weight | 1.2 lbs (546 g) |
| Test Voltages | 250 V, 500 V, 1000 V |
| Insulation Resistance Range | 100 MΩ, 200 MΩ, 400 MΩ |
| Accuracy | ±5% of scale |
| AC Voltage Range | 0 to 600 V |
| Accuracy | ±5% of scale |
| Resistance Range | 1 to 500 Ω |
| Accuracy | ±3% of scale |
| Continuity | 3 |
| Accuracy | ±3% of scale |
| Dimensions | 7.9 x 3.6 x 2" (200 x 92 x 50 mm) |
| Weight | 1.2 lbs (546 g) |
