The thickness gauge is used to measure non-magnetic coatings on steel substrates. This gauge features a backlit display and external sensor.
The thickness gauge is used to measure non-magnetic coatings on steel substrates. This gauge features a backlit display and external sensor.

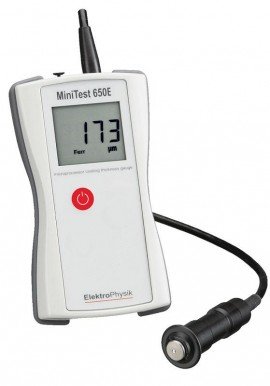

Evaluate non-magnetic coatings on steel with the ElektroPhysik 80-124-1401 MiniTest 650E-F Digital Coating Thickness Gauge, which includes an external probe. The durable carbide tip offers excellent wear resistance, and the unit has a rubber-rimmed casing for ram and impact protection in the field. Thanks to the backlit display, it's easy to take readings in dimly lit locations.
Features
| Measurement Range | 0 - 3000 μm or 0 to 120 mils |
| Minimum Measuring Area | φ 50 mm |
| Battery Type | AAA |
| Product Weight | 7.93 oz (225 g) |
| Accuracy | ±(3 μm + 5% of reading) |
| Minimum Measuring Radius | Concave: 3.9" (100 mm), Convex: 2" (50 mm) |
| Product Length | 2.7" (70 mm) |
| Product Height | 1.26" (32 mm) |
| Battery Life | More than 10,000 readings |
| Number Of Batteries Required | 3 |
| Product Width | 4.8" (122 mm) |
| Power Source | Battery powered |
