This Power Supply is suitable for powering all Dwyer pressure, temperature, or air velocity transmitters.
This Power Supply is suitable for powering all Dwyer pressure, temperature, or air velocity transmitters.

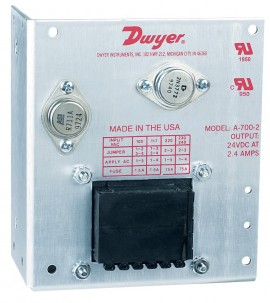

This Power Supply is economical and reliable. Its inexpensive and open-frame design allows for convenient access to input/output solder terminals. Auxiliary inputs are selectable for operation from power sources found worldwide.
| AC Input | 100/120/220/230-240 VAC ±10%, 47-63 Hz |
| DC Output | 24-29 VDC regulated |
| Maximum Current Output | A-700: 0.5 A @ 60 Hz, 0.45 A @ 50 Hz; A-700-2: 2 A @ 60 Hz, 1.8 A @ 50 Hz; A-700-3: 4.8 A @ 60 Hz, 4.5 A @ 50 Hz |
| Ambient Operating Temperature | 32 to 122°F (0 to 50°C) |
| External Fuse Required | 0.5 Amp for 100-120 VAC, 0.25 Amp for 220-240 VAC |
| Weight | 2 lb |
