Features simple, single-button control and has an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Includes a Phosphine (PH3) Gas Sensor.
Features simple, single-button control and has an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Includes a Phosphine (PH3) Gas Sensor.

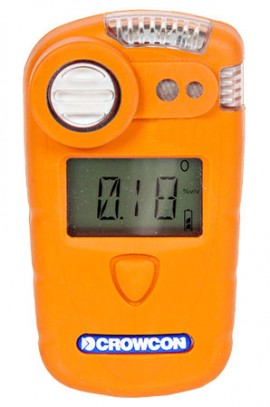

Gasman with Phosphine Sensor
Gasman monitor is available in a variety of gas configurations to meet your individual application. With its small size and light weight they are comfortable to wear all day long. Features visible flashing LEDs and loud audible and vibrating alarms to quickly alert the wearer to potential gas hazards. Data is recorded by the monitor and can be downloaded to a PC or printer using the adapter/PC interface (sold separately).
Features
Please note: Precautions must be taken when using pumps or manual aspirators. Some hose materials are not usable with readily absorbent gases.
Applications
| PH3 Range | 0 to 5 ppm |
| Alarms | Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels Visible: Dual colours red/ blue flashing LEDs in a gas hazard Internal vibrating alarm |
| Data logging | Full timed datalogging with adjustable sample rate, set to 1 minute data rate as default 900 hours storage at 1 minute interval (54,000 logs), > 4800 events |
| Battery | Rechargeable lithium battery for all gas types Non-rechargeable lithium battery for toxics and oxygen (excluding CO2) |
| Operating time | Rechargeable: 12 hours minimum for flammable unit Non-rechargeable: Up to 2 years |
| Operating Temperature | -20 to 65°C (-4 to 149°F) |
| Humidity | 20 to 90% RH |
| Ingress Protection | IP65 |
| Approvals | Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ 65°C) BASEEFA04ATEX0384 Flammable: ATEX II 2G Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ 65°C) BASEEFA04ATEX0383 International: Toxic or O2: IECEx BAS05.0039; Flammable: IECEx BAS05.0038 North America: CSA Class 1 Groups A,B,C,D Division 1 |
| PH3 Range | 0 to 5 ppm |
| Alarms | Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels Visible: Dual colours red/ blue flashing LEDs in a gas hazard Internal vibrating alarm |
| Data logging | Full timed datalogging with adjustable sample rate, set to 1 minute data rate as default 900 hours storage at 1 minute interval (54,000 logs), > 4800 events |
| Battery | Rechargeable lithium battery for all gas types Non-rechargeable lithium battery for toxics and oxygen (excluding CO2) |
| Operating time | Rechargeable: 12 hours minimum for flammable unit Non-rechargeable: Up to 2 years |
| Operating Temperature | -20 to 65°C (-4 to 149°F) |
| Humidity | 20 to 90% RH |
| Ingress Protection | IP65 |
| Approvals | Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ 65°C) BASEEFA04ATEX0384 Flammable: ATEX II 2G Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ 65°C) BASEEFA04ATEX0383 International: Toxic or O2: IECEx BAS05.0039; Flammable: IECEx BAS05.0038 North America: CSA Class 1 Groups A,B,C,D Division 1 |
