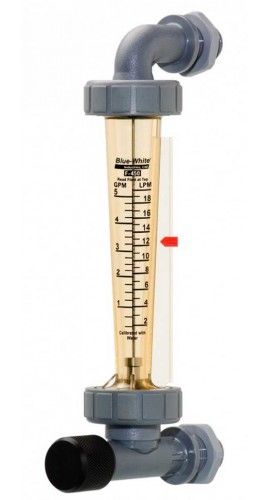

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 1 to 10GPM (4 to 40LPM) flow rate, 3/4in Female NPT and 316 SS float material. This flowmeter features an adjustable, panel-mount design.
Equipped with a 316 stainless-steel guide rod, this flowmeter has a 1 to 10GPM (4 to 40LPM) flow rate, 3/4in Female NPT and 316 SS float material. This flowmeter features an adjustable, panel-mount design.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Voici le produit de remplacement direct :
This flowmeter has a direct reading permanent scale.
Features
| Max. Working Pressure | 175psi (12 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 4in (100mm) approximate |
| Environment | Not for direct sunlight exposure |
| Maximum Pressure Drop | 2psi |
| Max. Working Pressure | 175psi (12 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | Standard units: 212°F (100°C) @ 0psi Solarmeter units: 240°F (115°C) @ 0psi |
| Full Scale Accuracy | ±4% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 4in (100mm) approximate |
| Environment | Not for direct sunlight exposure |
| Maximum Pressure Drop | 2psi |
