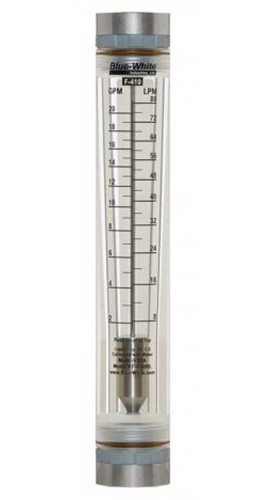

This variable-area flowmeter features a polypropylene guide rod holder.
This variable-area flowmeter features a polypropylene guide rod holder.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:
Visitez notre catégorie Débit pour trouver des produits similaires.
Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:
This flowmeter features a white back reflector for easy reading.
Features
| Pipe Size (Inch) | 1 |
| Flow Range (GPM) | 1 to 17 |
| Flow Range (LPM) | 4 to 64 |
| Float Material | Hastelloy |
| Meter Body | Cast Acrylic Rod |
| Adapter Material | Polypropylene |
| Guide Rod Holder | Polypropylene |
| O-ring Seals | FKM (optional EP) |
| Guide Rod | 316SS |
| Max. Working Pressure | 150psi (10.3 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | 150°F (65°C) @ 0psig |
| Full Scale Accuracy | ±5% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 5in (12.7cm) |
| Environment | Acceptable for direct sunlight exposure |
| Maximum Pressure Drop (PSI) | 2 |
| Width | 1.73in (44mm) |
| Height | 10.98in (279mm) |
| Length | 1.73in (44mm) |
