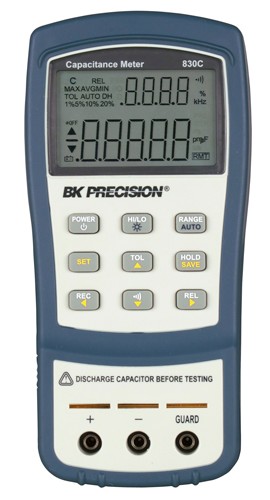

Quick and easy to operate, this capacitance meter measures capacitance by applying a constant current that briefly charges, then discharges the connected capacitor. With a convenient handheld design, this meter measures capacitance up to 200 mF and features a compare mode, which supports 25 sets of high/low limits.
Quick and easy to operate, this capacitance meter measures capacitance by applying a constant current that briefly charges, then discharges the connected capacitor. With a convenient handheld design, this meter measures capacitance up to 200 mF and features a compare mode, which supports 25 sets of high/low limits.
Features
Applications:
| Capacitance | Range: 1000 pF to 200 mF Resolution: 0.1 pF to 0.01 mF |
| Measuring Rate | 5 times per second for capacitance <100°F (37.77°C) |
| Operating Humidity (RH) | Maximum 80% RH for temperatures up to 31°C decreasing linearly to 50% RH at 40°C |
| Temperature | Operating: Full accuracy at 32 to 113°F (0 to 40°C) Storage: -4 to 122°F (-20 to 50°C) Coefficient: 0.1°C (specified accuracy) (from 0 to 18°C or 28 to 40°C) |
| Power | Supply: Single standard 9 V battery or AC power adapter Consumption: 6.5 mA for battery operation, 2 uA standby current (power is off) Battery Life: Approximately 70 hours without backlight |
| Display | 4 ½ digit liquid crystal display (LCD) with maximum reading of 11,000 counts Automatic polarity indication |
| Safety and EMC Compliance | IEC 61010-1:2001 pollution degree 2, IEC 61326-2-1:2005 |
| Dimensions | 1.5 x 3.5 x 1.6" (190 x 90 x 41 mm) |
| Weight | 0.77 lbs (350 g) |
