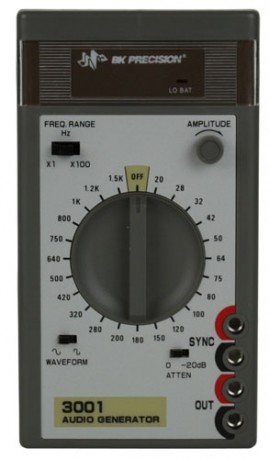

The model 3001 generates low-distortion sine waves at 46 discrete frequencies.
The model 3001 generates low-distortion sine waves at 46 discrete frequencies.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n'y a aucune option de remplacement.
Nous pouvons vous aider à trouver ce dont vous avez besoin:
Output impedance is 600Ω at the dual banana jacks and the output voltage is continuously adjustable up to 1.2 V (RMS) into an open circuit. Output flatness is ±0.5 dB. A 5 Vpp square wave is provided at separate banana jacks for synchronization. Frequency accuracy is 3% from 20 Hz to 100 kHz. The unit is powered by a 9 V battery.
Caractéristiques
Applications
| Frequency Range | x1 range 20 Hz to 1.5 kHz (23 steps), x100 range 2 kHz to 150 kHz (23 steps) |
| Rise and Fall Time | < 0.5 μs |
| Sag | < 5% at 20 Hz (DC coupled) |
| Over Shoot | < 2% from maximum output, to 50 mV p-p |
| Accuracy | 20 Hz through 100 kHz (±3% or less), 120 kHz and 150 kHz (±5% or less) |
| Output Control | 0 dB/-20 dB attenuator switch and variable amplitude control |
| Output Impedance | approx. 600 Ω |
| Output Voltage | >1.2 V rms at max. setting (no load) |
| Duty Ratio | 50% +5% |
| Frequency Range | x1 range 20 Hz to 1.5 kHz (23 steps), x100 range 2 kHz to 150 kHz (23 steps) |
| Rise and Fall Time | < 0.5 μs |
| Sag | < 5% at 20 Hz (DC coupled) |
| Over Shoot | < 2% from maximum output, to 50 mV p-p |
| Accuracy | 20 Hz through 100 kHz (±3% or less), 120 kHz and 150 kHz (±5% or less) |
| Output Control | 0 dB/-20 dB attenuator switch and variable amplitude control |
| Output Impedance | approx. 600 Ω |
| Output Voltage | >1.2 V rms at max. setting (no load) |
| Duty Ratio | 50% +5% |
