The combustion and emissions analyzer has an automatic dilution mode and sensor protection that helps protect the analyzer in harsh environments, thus, extending sensor life.
The combustion and emissions analyzer has an automatic dilution mode and sensor protection that helps protect the analyzer in harsh environments, thus, extending sensor life.

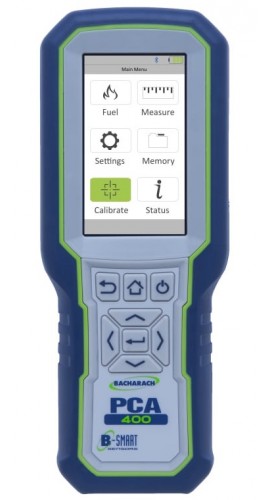

The PCA 400 combustion and emissions analyzer is a versatile analyzer for many commercial and industrial applications.
Features
| Display | Digital |
| Fuels | Natural Gas, Coal, Oil 2/4/6, Propane, Wood/Biofuel, Kerosene, Bagasse, Digester Gas, B5, Pellets, KOKS, LEG, LPG, Butane, Wood Chipss |
| Operating Temperature | ±0 to ±45°C (±32 to ±113°F) |
| Measurements | 0 to 20.9% (O₂), 0 to 10000 ppm (CO-H₂ Compensated), 0 to 5000 ppm (SO₂) |
| Warm-Up Time | 60 seconds |
| Run Time | 12 to 14 hrs |
| Operating Conditions | 15 - 90% RH (Non-Condensing), 1 ATM ±10% |
| Dimensions | 10 x 3.8 x 2.5" (25.4 x 9.7 x 6.4 cm) |
| Weight | 1.5 lbs (0.68 kg) |
| Display | Digital |
| Fuels | Natural Gas, Coal, Oil 2/4/6, Propane, Wood/Biofuel, Kerosene, Bagasse, Digester Gas, B5, Pellets, KOKS, LEG, LPG, Butane, Wood Chipss |
| Operating Temperature | ±0 to ±45°C (±32 to ±113°F) |
| Measurements | 0 to 20.9% (O₂), 0 to 10000 ppm (CO-H₂ Compensated), 0 to 5000 ppm (SO₂) |
| Warm-Up Time | 60 seconds |
| Run Time | 12 to 14 hrs |
| Operating Conditions | 15 - 90% RH (Non-Condensing), 1 ATM ±10% |
| Dimensions | 10 x 3.8 x 2.5" (25.4 x 9.7 x 6.4 cm) |
| Weight | 1.5 lbs (0.68 kg) |
