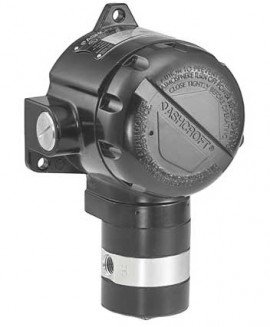

This differential pressure switch offers dependability and a long life cycle suited to pressure control, shutdown or alarm operations. It comes with a NEMA 7/9 epoxy-coated aluminum enclosure and pressure range of 100 inH2O.
This differential pressure switch offers dependability and a long life cycle suited to pressure control, shutdown or alarm operations. It comes with a NEMA 7/9 epoxy-coated aluminum enclosure and pressure range of 100 inH2O.
Caractéristiques
Applications
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical) |
| Enclosure Rating | NEMA 4X, IP66 |
| Enclosure Material | Epoxy coated aluminum |
| Diaphragm Material | Buna N |
| Pressure Connection | 1/4 NPT Female |
| Electrical Output | SPDT |
| Electrical Termination | 3/4 NPT Female |
| Ambient Temperature Range | -20 to 150°F (-28 to 65°C) |
| Process Temperature | 0 to 150°F (-17.8 to 65.6°C) |
| Pressure Range | 100"H2O |
