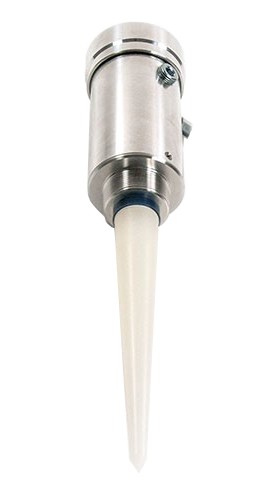

Get dependable readings even in hazardous locations with the explosion-proof pulse radar level transmitter that offers the reliable accuracy of radar and features a low dielectric requirement for target materials, including foam or vapors. With easy wiring and setup, the transmitter provides accurate and reliable results.
Get dependable readings even in hazardous locations with the explosion-proof pulse radar level transmitter that offers the reliable accuracy of radar and features a low dielectric requirement for target materials, including foam or vapors. With easy wiring and setup, the transmitter provides accurate and reliable results.
With programmable echo masking and damping factors, the transmitter adjusts signal power for optimal accuracy and clarity.
Features
Applications
| Performance | |
| Frequency | 6.3 GHz |
| Accuracy | ±0.25% of measured range |
| 4-20 mA Resolution | 6.1 μA (approximately 2622 digital counts across range) |
| Target Dielectric Constant | εr > 2 |
| Connectivity | |
| Output | 4-20 mA (shared common); HART 7 |
| Electrical | |
| Loop Resistance | RL = (VS - 6) / 24 mA |
| Input Voltage | 12 to 30 VDC; 20 to 35 VDC (HART) |
| Power Consumption | 0.07 A max, 1.68 W at 24 VDC |
| Environmental | |
| Enclosure Operating Temperature | -40 to 140°F (-40 to 60°C) |
| Certifications | FCC: Part 15 for low power communications class II install FM: Class I, Div 1, Groups B, C, D, Class II/III, Div 1, Groups E, F, G |
| Performance | |
| Frequency | 6.3 GHz |
| Accuracy | ±0.25% of measured range |
| 4-20 mA Resolution | 6.1 μA (approximately 2622 digital counts across range) |
| Target Dielectric Constant | εr > 2 |
| Connectivity | |
| Output | 4-20 mA (shared common); HART 7 |
| Electrical | |
| Loop Resistance | RL = (VS - 6) / 24 mA |
| Input Voltage | 12 to 30 VDC; 20 to 35 VDC (HART) |
| Power Consumption | 0.07 A max, 1.68 W at 24 VDC |
| Environmental | |
| Enclosure Operating Temperature | -40 to 140°F (-40 to 60°C) |
| Certifications | FCC: Part 15 for low power communications class II install FM: Class I, Div 1, Groups B, C, D, Class II/III, Div 1, Groups E, F, G |
