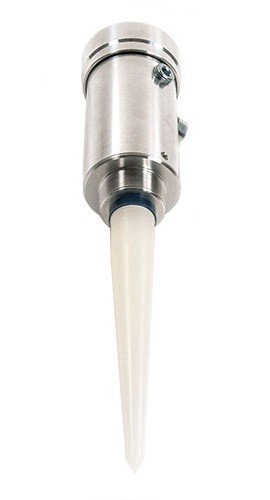

Easy to use and versatile, this pulse radar level transmitter provides accurate level readings for liquid level measurements and automatically adjusts signal power for optimal accuracy and clarity. With programmable echo masking and damping factors, the transmitter offers dependable results in a wide range of environments.
Easy to use and versatile, this pulse radar level transmitter provides accurate level readings for liquid level measurements and automatically adjusts signal power for optimal accuracy and clarity. With programmable echo masking and damping factors, the transmitter offers dependable results in a wide range of environments.
With an isolated 4-20 mA output and push-button field calibration, the pulse radar level transmitter offers easy wiring and set up.
Caractéristiques
Applications
| Performance | |
| Frequency | 6.3 GHz |
| Accuracy | ±0.25% of measured range |
| 4-20 mA Resolution | 6.1 μA (approximately 2622 digital counts across range) |
| Target Dielectric Constant | εr > 2 |
| Connectivity | |
| Output | 4-20 mA (shared common or isolated); HART 7 |
| Electrical | |
| Loop Resistance | RL = (VS - 6) / 24 mA |
| Environmental | |
| Enclosure Operating Temperature | -40 to 140°F (-40 to 60°C) |
| General Specifications | |
| Certifications | FCC: Part 15 for low power communications class II install |
