Rugged and versatile, this locator kit makes the precise location of underground energized and de-energized wires, cables, and pipes easy. Providing measurements to 20', this receiver traces signals in induction or test-lead connection modes, while the transmitter utilizes a 33 kHz frequency, ideal for locating applications.
Rugged and versatile, this locator kit makes the precise location of underground energized and de-energized wires, cables, and pipes easy. Providing measurements to 20', this receiver traces signals in induction or test-lead connection modes, while the transmitter utilizes a 33 kHz frequency, ideal for locating applications.
This underground utility locator kit can be used in different modes for optimal tracing of energized and de-energized utilities in a variety of applications.
Features
Applications
| Receiver | |
| Operating Voltage | 0 to 600 V |
| Modes | Tracing Active tracing: 33 kHz (32,768 Hz) and 8 kHz (8192 Hz) Passive tracing: 50/60 Hz and radio Locating Peak and Null |
| Depth Measurement | Range: Up to 20' (6 m) Accuracy: 4" to 10' (0.1 to 3m): ±3% 10 to 20' (3 to 6 m): ±5% |
| Sensitivity at 1 m (typical) | Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA |
| Display | 4.3" (109 mm), 320 x 240 BW outdoor LC-Display with auto backlight |
| Update Rate | Instantaneous |
| Temperature and Humidity | Operating: -4 to 122°F (-20 to 50 °C), ≤90% RH Storage: -40 to 140 °F (-40 to 60 °C), ≤90% RH |
| Operating Altitude | <6561' (<2000 m) |
| Pollution degree | 2 |
| IP-Rating | IP54 |
| Drop Proof | 3.28' (1 m) |
| Power Supply | 6 x 1.5 V AA alkaline batteries |
| Auto Power Off | 15 minutes idle |
| Battery Life | Approximately 35 hours |
| Measurement Category | CAT IV 600 V |
| Safety Compliance | IEC 61010-1, IEC 61010-2-033, CSA/UL 61010-1, CSA/UL 61010-2-033 |
| Dimensions | 11.9 x 4.7 x 30.7" (302 x 120 x 779 mm) |
| Weight | 4.2 lbs (1.9 kg) |
| Transmitter | |
| Operating Voltage | De-energized circuit only for direct connection mode |
| Transmitting Frequency | 33 kHz |
| De-energized Tracing Modes | Induction Mode Direct Connection Mode Clamp Mode |
| Transmitting Mode Power Output | Maximum 1 W |
| Output Voltage | Voltage: Maximum 35 Vrms Current: Maximum 100 mA rms |
| Visual Signal Indication | Two LEDs indicating LO and HI signal |
| Temperature and Humidity | Operating: -4 to 122°F (-20 to 50°C), ≤80% RH Storage: -40 to 140°F (-40 to 60°C), ≤80% RH |
| Operating Altitude | <6561' (<2000 m) |
| IP-Rating | IP54 |
| Power Supply | 4 x 1.5 V D cell alkaline batteries |
| Battery Life | Approximately 12 hours at 70°F (21°C) |
| Safety Compliance | IEC 61010-1, CSA/UL 61010-1, IEC 61010-031, CSA/UL 61010-031 (test leads), IEC 61010-1, CSA/UL 61010-1, IEC 61010-031, CSA/UL 61010-031 (test leads) |
| Dimensions | 18.1 x 3.5 x 2.6" (460 x 90 x 65 mm) |
| Weight | Approximately 3.9 lbs (1.77 kg) |

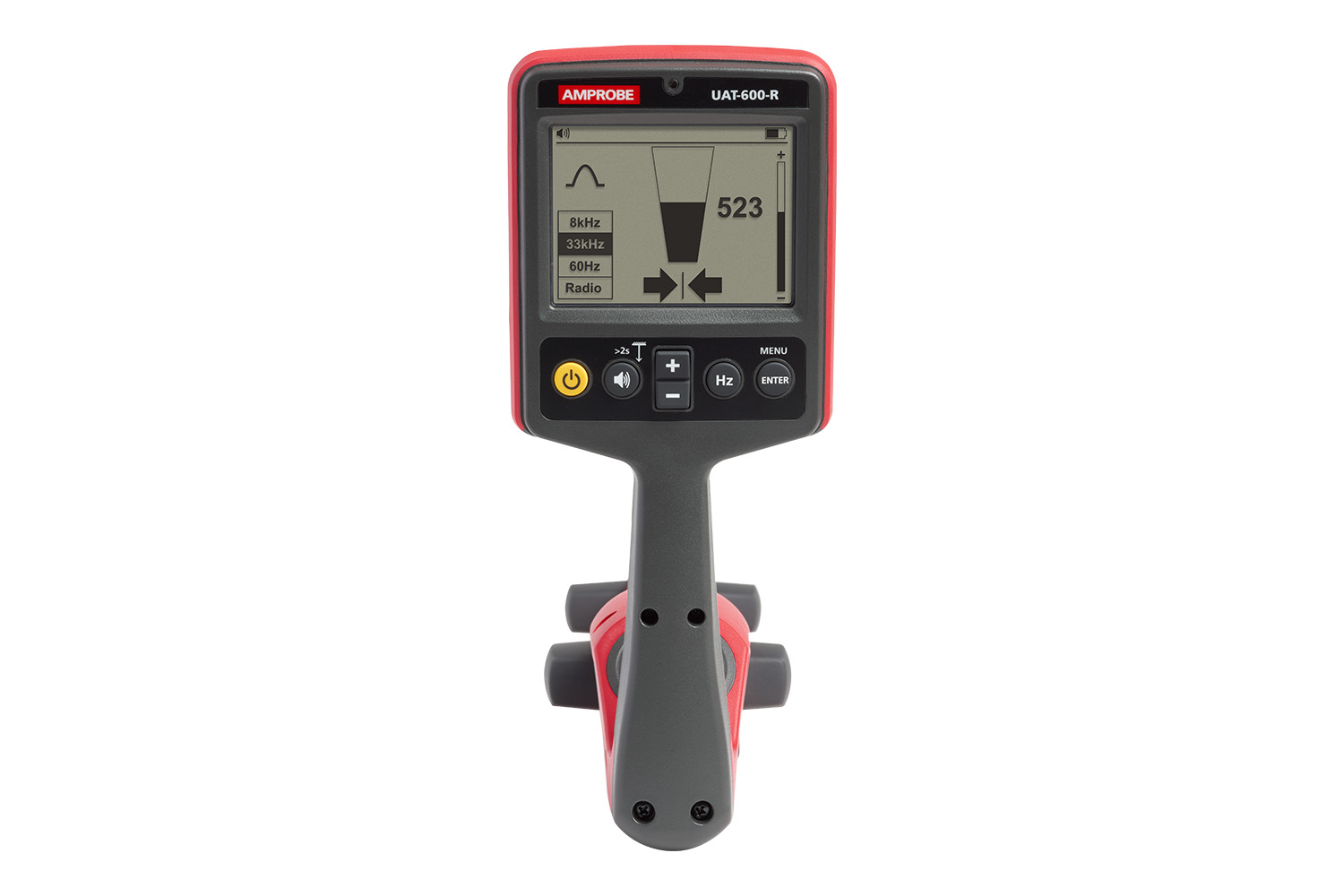

Detecting electromagnetic fields emitted by buried utility lines, the receiver locates underground pipes, energized and de-energized cables, and provides depth measurement to 20'. With a fast sound and meter response, the receiver also features a high-contrast display with an automatic backlight.
Able to alternate between the wireless induction or the direct test-lead connection mode, the transmitter automatically chooses the correct locating function and induces signals into buried pipes, cables, or wires, making them easily detectable. By utilizing a 33 kHz frequency, the transmitter is ideal for locating applications.
Versatile, this test lead kit includes green test lead with detachable green alligator clip, gray test lead with permanently attached gray alligator clip, and a ground stake
Safely transport and keep your receiver, transmitter, test leads organized in this rugged and durably constructed carrying case.
6 x AA Batteries for Receiver
4 x D Batteries for Transmitter
